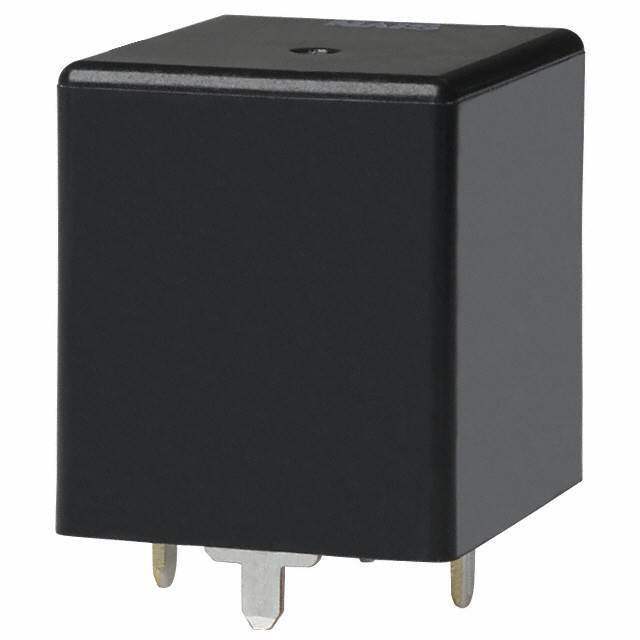

CB1AH-P-12V Panasonic Electric Works
Same model may have multiple batches, images only for reference.

CB1AH-P-12V

Part No CB1AH-P-12V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 70A 12V
Datasheet
CB1AH-P-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Category Relays > Automotive Relays
Packaging Bulk
Part Status Active
Coil Type Non Latching
Coil Current 117 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 70 A
Switching Voltage 14VDC - Nom
Ultra Librarian 3D Model Ultra Librarian CB1AH-P-12V CAD Model

Description

FEATURES

● This relay has an Mini-ISO (International Organization for Standardization) terminal arrangement.

● Compact and high capacity

● Features heat-resistant type

● Built-in resistor type is also available.

TYPICAL APPLICATIONS

● Automobiles

   Cell motors, Air compressor, ABS, EPS, etc.

● Construction equipment

● Agricultural equipment, Conveyor, etc.
