Same model may have multiple batches, images only for reference.

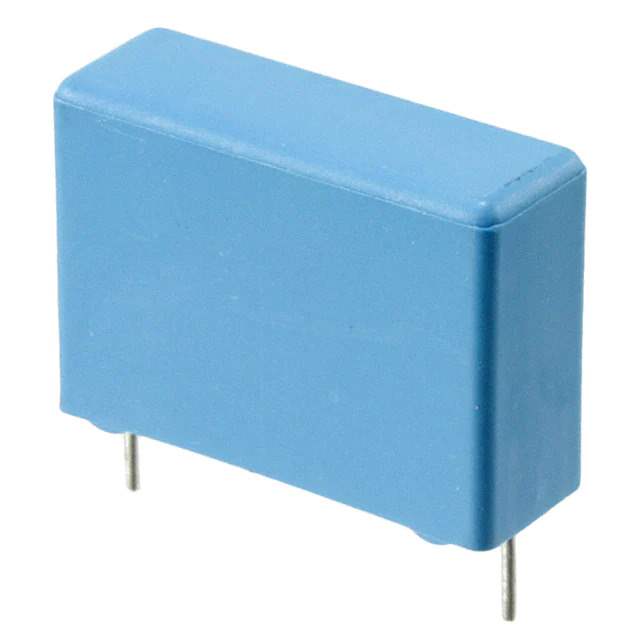

PHE450XD5100JD15R06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE450XD5100JD15R06L2

Part No PHE450XD5100JD15R06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 3KVDC RADIAL / 10000 pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE450
Package Bulk
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 1000V (1kV)
Voltage Rating - DC 3000V (3kV)
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.024" L x 0.354" W (26.00mm x 9.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications High Frequency, Switching
Base Product Number PHE450
Standard Package 308
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1350998-PHE450XD5100JD15R06L2
Ultra Librarian 3D Model Ultra Librarian PHE450XD5100JD15R06L2 CAD Model

Description

The Kemet Capacitor is a high-quality component that is designed to offer excellent performance in electronic circuits.

  • Capacitance: 10000 pF
  • Tolerance: ±5%
  • Package: Radial
  • Mounting: Through-Hole
  • Voltage Rating (AC): 1000V (1kV)
  • Voltage Rating (DC): 3000V (3kV)
  • Operating Temperature Range: -55℃ to 105℃
