Same model may have multiple batches, images only for reference.

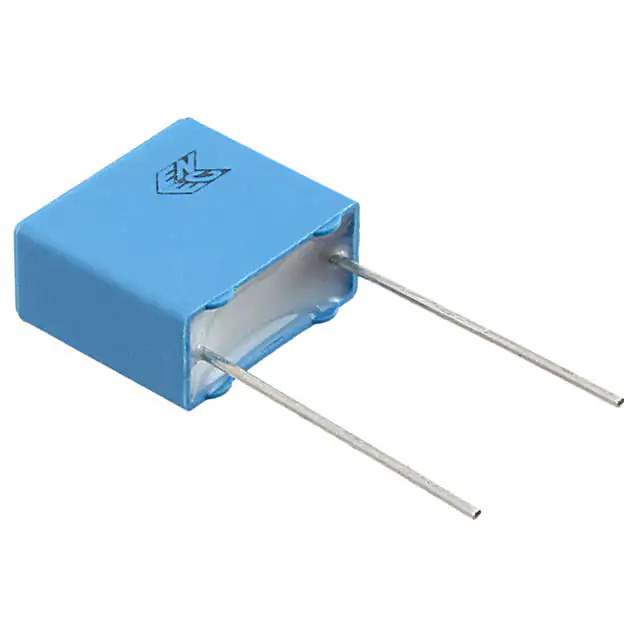

PHE840MA6100MA04R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MA6100MA04R17

Part No PHE840MA6100MA04R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 20% 760VDC RADIAL
Datasheet
PHE840MA6100MA04R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE840M
Package Bulk
Product Status Active
Capacitance 0.1 µF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Ratings X2
Base Product Number PHE840
Standard Package 600 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 845152-PHE840MA6100MA04R17
Ultra Librarian 3D Model Ultra Librarian PHE840MA6100MA04R17 CAD Model

Description

The KEMET PHE840MA6100MA04R17 is an active film capacitor in the PHE840M series manufactured by KEMET.

  • Termination Style: PC Pins
  • Package: Bulk
  • Voltage Rating (AC): 275V AC
  • Voltage Rating (DC): 760V DC
  • Application: EMI and RFI Suppression
  • Capacitance: 0.1 µF
  • Tolerance: ±20%
