Same model may have multiple batches, images only for reference.

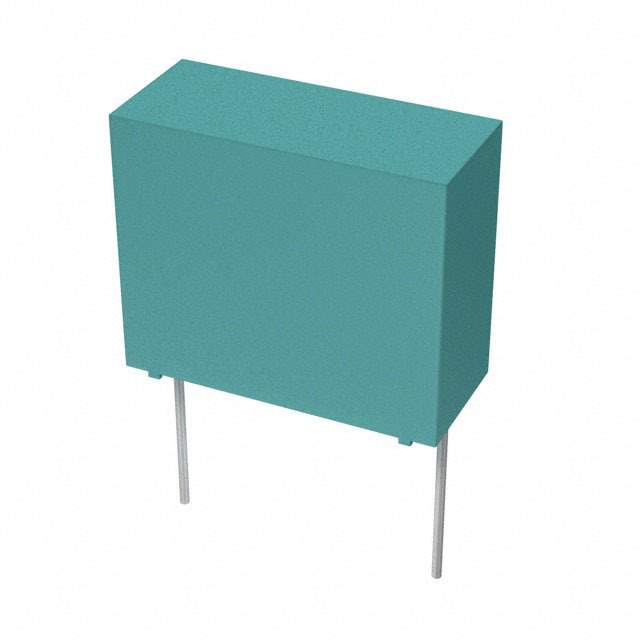

PHE840MY7100MD16R06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE840MY7100MD16R06L2

Part No PHE840MY7100MD16R06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 20% 760VDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 23 Weeks
Features Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial
Manufacturer Kemet
Series PHE840M
Package Bulk
Operating Temperature Range -55°C ~ 105°C
Mounting Through Hole
Package Radial
Family Name PHE840
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number 399-5430, F840DT105M275C
Quantity per package 253
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930359-PHE840MY7100MD16R06L2
Ultra Librarian 3D Model Ultra Librarian PHE840MY7100MD16R06L2 CAD Model

Description

This Kemet capacitor is from the PHE840M series and has a Win Source Part Number of 930359-PHE840MY7100MD16R06L2.

  • Type: Film capacitor
  • Voltage Rating: 275V and 760V Polypropylene (PP), Metallized Radial features
  • Mounting: Radial, through hole
  • Family Name: PHE840
  • Category: Capacitors
  • Popularity: High popularity
  • Supply and Demand Status: Balanced
  • Packaging: Bulk packaging
  • Quantity per Package: 253
  • Estimated Production Lead Time: 23 weeks
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.25.0010
  • Other Part Numbers: 399-5430 and F840DT105M275C
