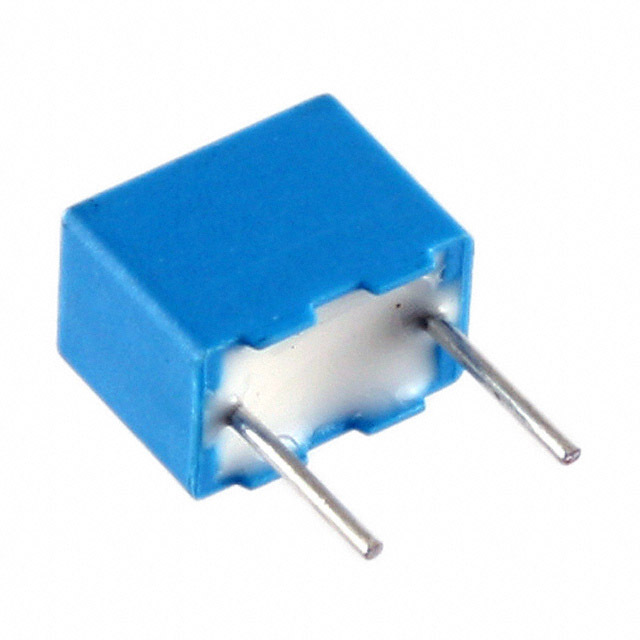

Same model may have multiple batches, images only for reference.
PHE850EB5220MB06R17 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE850EB5220MB06R17

Part No PHE850EB5220MB06R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 1.25KVDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 0.022 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1521504-PHE850EB5220MB06R17
Ultra Librarian 3D Model Ultra Librarian PHE850EB5220MB06R17 CAD Model

Description
