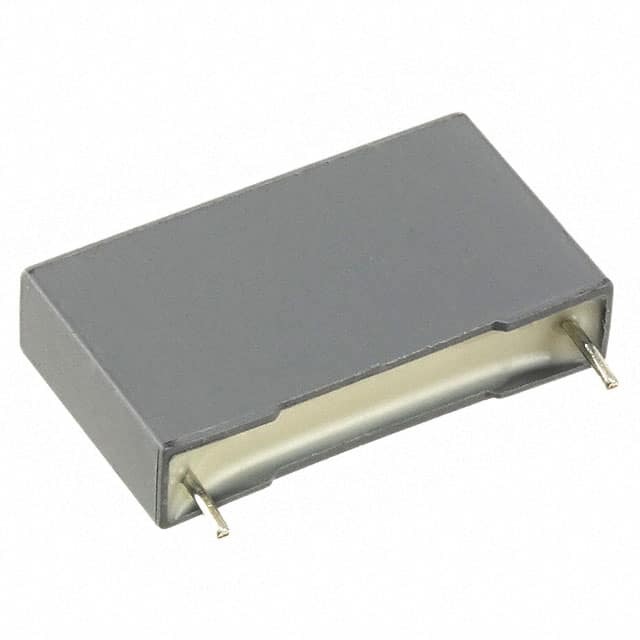

R46KN322000M1M Kemet
Same model may have multiple batches, images only for reference.

R46KN322000M1M

Part No R46KN322000M1M
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 20% 560VDC RAD  /  0.22 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R46
Package Bulk
Capacitance 0.22 µF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 560V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max) 0.594" (15.10mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Ratings X2
Base Product Number R46KN
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-5464,46KN322000M1M
Standard Package 805
Win Source Part Number 1153793-R46KN322000M1M
Ultra Librarian 3D Model Ultra Librarian R46KN322000M1M CAD Model

Description

The R46KN322000M1M is a film capacitor from Kemet with a capacitance of 0.22 µF and a tolerance of ±20%.

  • Voltage Rating: 275V (AC), 560V (DC)
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 110°C
  • Application: EMI and RFI Suppression
  • Lead Spacing: 0.886" (22.50mm)
  • Package/Case: Radial
  • Height: 0.594" (15.10mm)
  • Dimension: 1.043" L x 0.236" W (26.50mm x 6.00mm)
