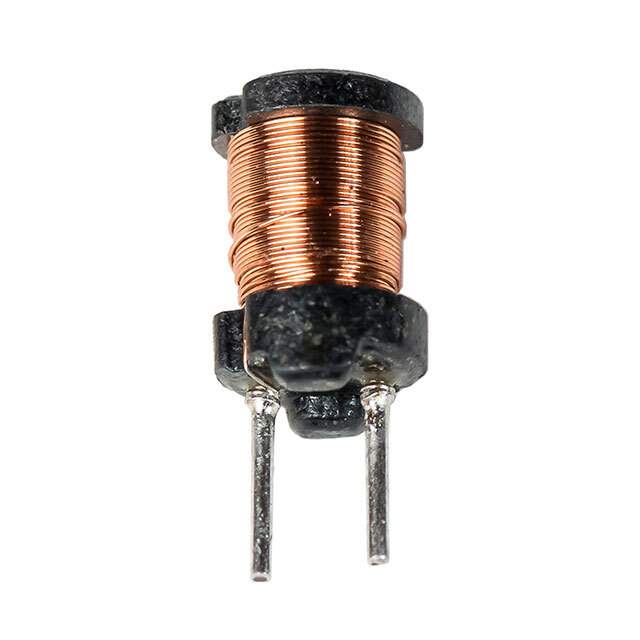

Same model may have multiple batches, images only for reference.

SBCP-47HY102B

Name: SBCP-47HY102B
Brand: Kemet
SKU: 1272829
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SBCP-47HY102B
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SBCP
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 mH
Tolerance	±10%
Current Rating (Amps)	150 mA
Current - Saturation (Isat)	160mA
Shielding	Unshielded
DC Resistance (DCR)	6Ohm Max
Temperature Range - Operating	-20°C ~ 105°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.295" (7.50mm)
Base Product Number	SBCP-47HY
Other Names	399-18984,UPIO47HY102B00,SBCP-47HY102B
Standard Package	6,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272829-SBCP-47HY102B
Ultra Librarian 3D Model	Ultra Librarian SBCP-47HY102B CAD Model

Alternative Products

Description

The SBCP series drum core, wirewound inductor from KEMET is an unshielded fixed inductor that has an inductance of 1 mH with a tolerance of ±10%.

DC Resistance (DCR): 6 Ohm max
Current Rating: 150 mA
Core Material: Ferrite
Mounting Type: Through-hole
Package/Case: Radial, Vertical Cylinder (Open)
Diameter: 0.197" (5.00mm)
Operating Temperature Range: from -20°C to 105°C
Suitable for Use: in various applications such as power supplies, DC-DC converters, and filtering circuits
