Same model may have multiple batches, images only for reference.

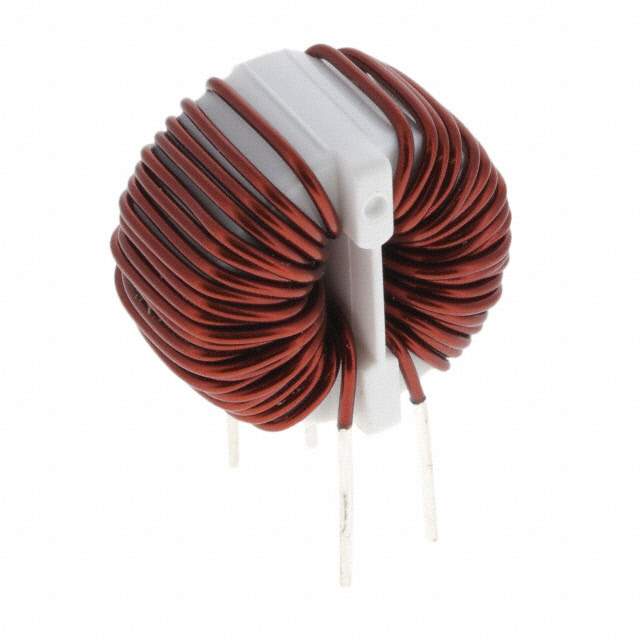

SC-05-1503 Real Image
Same model may have multiple batches, images only for reference.

SC-05-1503

Part No SC-05-1503
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10.5 mH @ 16 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-05
Other Names UALSC051503000,399-SC-05-1503
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277077-SC-05-1503
Ultra Librarian 3D Model Ultra Librarian SC-05-1503 CAD Model

Description

The SC-05-1503 is a common mode choke manufactured by KEMET.

  • Series: SC series
  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 5A
