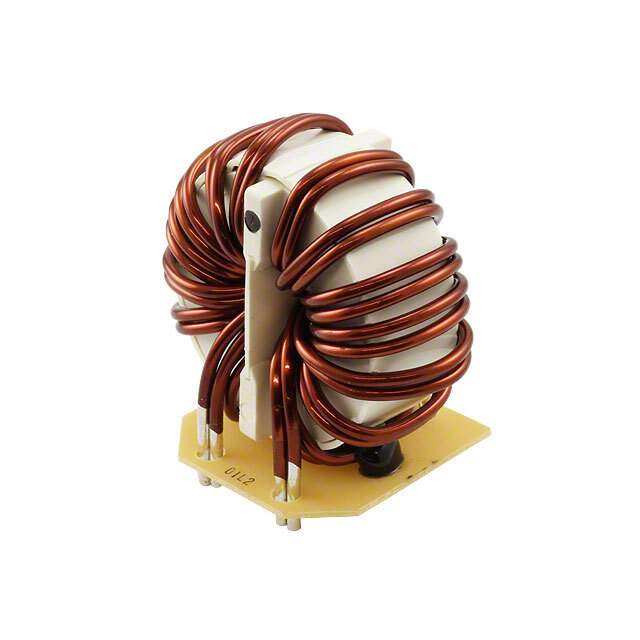

SCR22-050-0R9A100JH Real Image
Same model may have multiple batches, images only for reference.

SCR22-050-0R9A100JH

Part No SCR22-050-0R9A100JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR22-050
Other Names 399-20203,UALCA0R9A100JH
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276897-SCR22-050-0R9A100JH
Ultra Librarian 3D Model Ultra Librarian SCR22-050-0R9A100JH CAD Model

Description

The KEMET SCR22-050-0R9A100JH is a common mode choke that is part of the SCR series.

  • Manufacturer: KEMET
  • Product Name: SCR22-050-0R9A100JH
  • Series: SCR
  • Filter Type: Power line
  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 5A
  • Height: 1.142" (29.00mm)
  • Package: 4 PC Pin horizontal
  • Mounting Type: Through-hole
  • Temperature Range: -25°C to 120°C
  • Inductance: 10 mH @ 10 kHz
  • DC Resistance (DCR): 60mOhm
  • RoHS: Compliant
  • REACH: Unaffected
