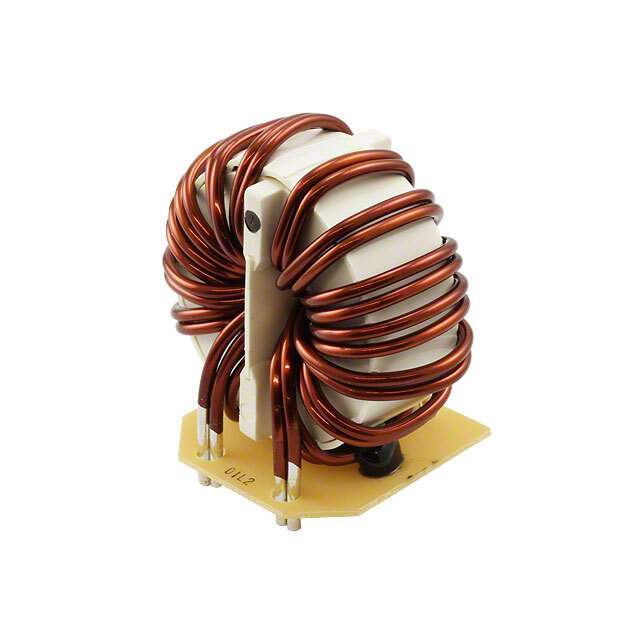

SCR22-100-1R3A015JH Real Image
Same model may have multiple batches, images only for reference.

SCR22-100-1R3A015JH

Part No SCR22-100-1R3A015JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 12mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR22-100
Other Names 399-20207,UALCB1R3A015JH
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276903-SCR22-100-1R3A015JH
Ultra Librarian 3D Model Ultra Librarian SCR22-100-1R3A015JH CAD Model

Description

The KEMET SCR22-100-1R3A015JH is a common mode choke filter designed for power line filtering applications.

  • Manufacturer: KEMET
  • Product Name: SCR22-100-1R3A015JH
  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 10A
  • Height: 29.00mm
  • Width: 23.00mm
  • Series: SCR
  • Inductance: 1.5mH @ 10 kHz
  • DC Resistance: 12mOhm
  • Mounting: Through hole
  • Package: Horizontal, 4 PC pin
  • Operating Temperature Range: -25°C to 120°C
  • Sold in: Bulk
  • Standard Package: 150
