Same model may have multiple batches, images only for reference.

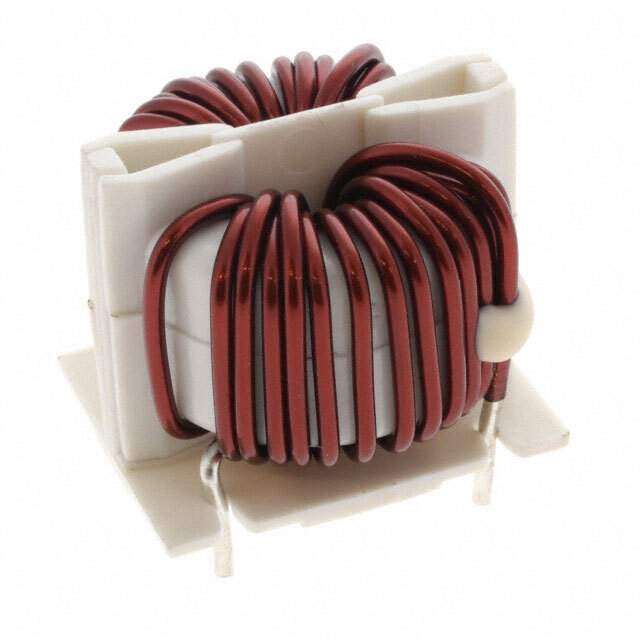

SCR31B-200-1R9A017JH Real Image
Same model may have multiple batches, images only for reference.

SCR31B-200-1R9A017JH

Part No SCR31B-200-1R9A017JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.7 mH @ 10 kHz
Current Rating (Max) 20A
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.890" Dia (48.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR31B
Other Names 399-20212,UALFD1R9A017JH
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276899-SCR31B-200-1R9A017JH
Ultra Librarian 3D Model Ultra Librarian SCR31B-200-1R9A017JH CAD Model

Description

The SCR31B-200-1R9A017JH is a common mode choke filter used in electronic devices to reduce electromagnetic interference.

  • Manufacturer: KEMET
  • Product Name: SCR31B-200-1R9A017JH
  • Voltage Rating: 500V AC and DC
  • Maximum Current Rating: 20A
  • Filter Type: Power line
  • Lines: Two
  • Inductance: 1.7 mH @ 10 kHz
  • Mounting: Through hole
  • Package: Horizontal, 4 PC pin
  • Height: 35.00mm
  • Dimension: 48.00mm
  • Standard Package: 80
  • Temperature Range: -25°C to 120°C
