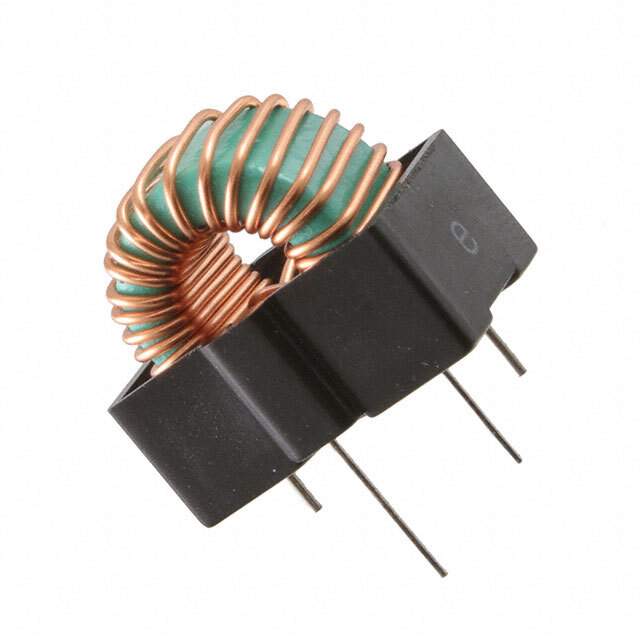

SN8D-300JB Real Image
Same model may have multiple batches, images only for reference.

SN8D-300JB

Part No SN8D-300JB
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8D-300JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 45 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 0.854" (21.70mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SN8D
Other Names 399-20599,UALSN8D300JB00
Standard Package 910
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276844-SN8D-300JB
Ultra Librarian 3D Model Ultra Librarian SN8D-300JB CAD Model

Description

The KEMET SN series common mode choke is a power line filter that is designed to provide noise suppression for electronic devices.

  • Current Rating: 2A
  • Mounting Type: Through-Hole
  • Package: Horizontal 4 PC Pin
  • Maximum Height: 0.854 inches (21.70mm)
