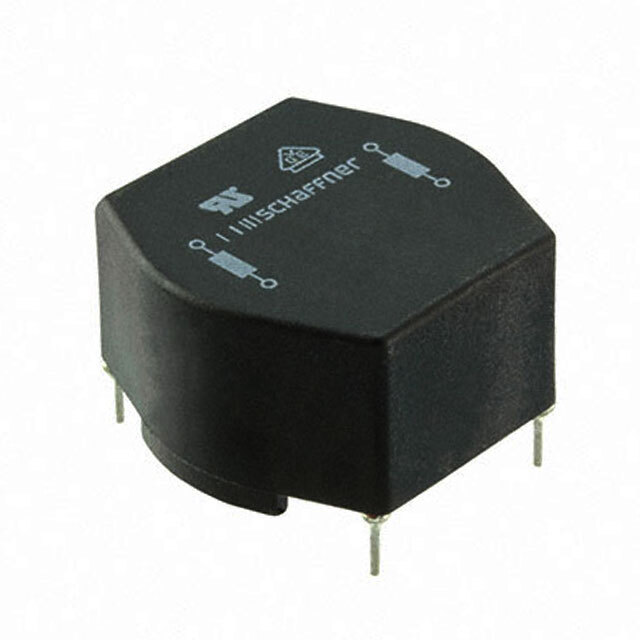

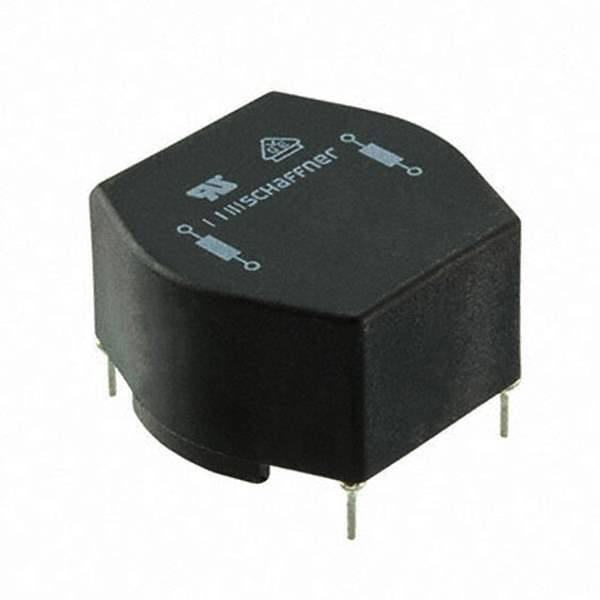

SS11H-R17036-CH Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SS11H-R17036-CH

Part No SS11H-R17036-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 3.6MH 1.7A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.6 mH @ 1 kHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 190mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.827" L x 0.807" W (21.00mm x 20.50mm)
Height (Max) 0.669" (17.00mm)
Case / Package Horizontal, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530618-SS11H-R17036-CH
Ultra Librarian 3D Model Ultra Librarian SS11H-R17036-CH CAD Model
