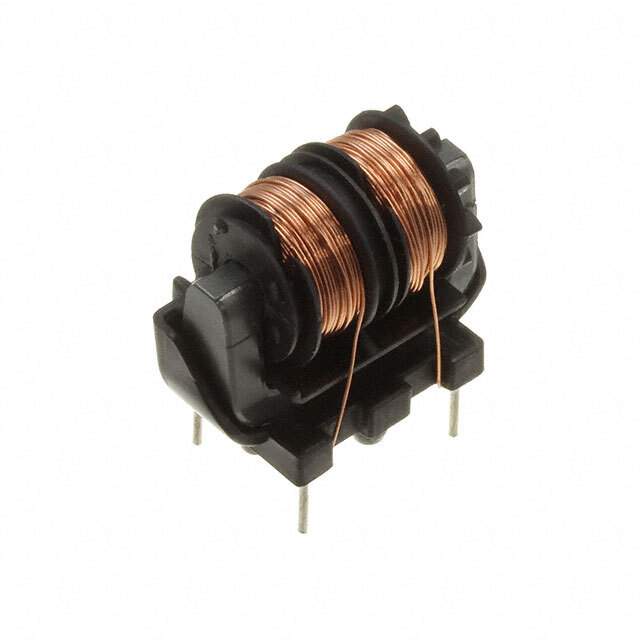

Same model may have multiple batches, images only for reference.

SSR10V-05595

Name: SSR10V-05595
Brand: Kemet
SKU: 1276572
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSR10V-05595
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SSR
Package	Bulk
Number of Lines	2
Inductance @ Frequency	59.5 mH @ 10 kHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	1.7Ohm
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 120°C
Mounting Type	Through Hole
Dimension	0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max)	0.827" (21.00mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	SSR10V
Other Names	UALR10V0559500,399-19026
Standard Package	600
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1276572-SSR10V-05595
Ultra Librarian 3D Model	Ultra Librarian SSR10V-05595 CAD Model

Alternative Products

Description

The SSR10V-05595 is a common mode choke manufactured by KEMET.

Voltage Rating: 250V AC
Maximum Current: 500mA
Inductance @ 10kHz: 59.5mH
DC Resistance: 1.7Ohm
Mounting Type: Through-hole
Package/Case: vertical, 4 PC pin
Height: 0.827" (21.00mm)
Dimension: 0.925" L x 0.512" W (23.50mm x 13.00mm)
