Same model may have multiple batches, images only for reference.

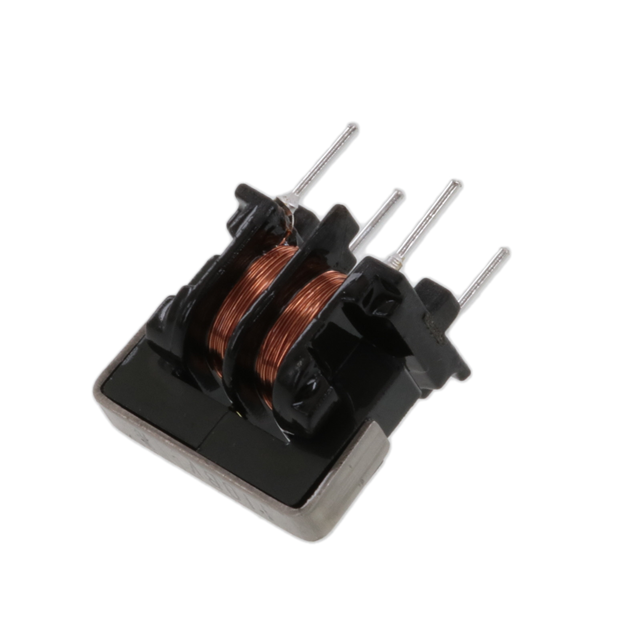

ST-110BV Real Image
Same model may have multiple batches, images only for reference.

ST-110BV

Part No ST-110BV
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Filter Type Signal Line
Number of Lines 2
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 7.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating 20°C ~ 75°C
Mounting Type Through Hole
Dimension 0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, 4 PC Pin
Other Names 399-ST-110BV,UDLST00110BV00
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276505-ST-110BV
Ultra Librarian 3D Model Ultra Librarian ST-110BV CAD Model

Description

The KEMET ST-110BV is a common mode choke that is designed for use in various applications.

  • Win Source Part Number: 1276505-ST-110BV
  • Series: ST
  • Voltage Rating: 50V
  • Current Rating: 150mA
  • Package: Tray
  • Standard Package: 1,000
  • Filter Type: Signal Line
  • Height: 0.669 inches
  • Number of Lines: 2
  • DC Resistance: 7.5Ohm
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pins
  • Temperature Range for Operating: 20°C to 75°C
