Same model may have multiple batches, images only for reference.

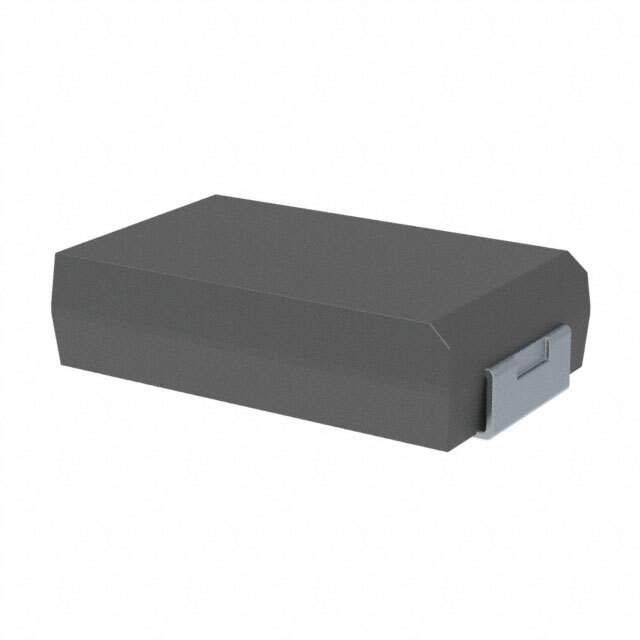

T520V477M2R5ATE006 Real Image
Same model may have multiple batches, images only for reference.

T520V477M2R5ATE006

Part No T520V477M2R5ATE006
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Tantalum, Polymer Tantalum, T520, 470 uF, 20%, 2.5 V, 7343, SMD, Polymer, Molded, Low Profile/ESR, NonCombustible, 6mOhms, 1.9mm
Datasheet
T520V477M2R5ATE006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel - TR
Capacitance 470μF
Tolerance ±20%
Voltage Rating DC 2.5V
Type Molded
ESR (Equivalent Series Resistance) 6 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Manufacturer Size Code V
Features General
Win Source Part Number 1263488-T520V477M2R5ATE006
Manufacturer Homepage www.kemet.com
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date October 11, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian T520V477M2R5ATE006 CAD Model

Description

The Kemet T520V477M2R5ATE006 is a molded capacitor with a capacitance of 470μF and a tolerance of ±20%.

  • Capacitance: 470μF
  • Tolerance: ±20%
  • ESR: 6 mOhm
  • Voltage Rating DC: 2.5V
  • Series: KO-CAP T520
  • Package Size: 2917 (7343 Metric)
  • Mounting: Surface mountable
  • Lifetime: 2000 Hrs @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Halogen-Free: Yes
  • EAR99: Yes
  • Country of Origin: China
  • Estimated EOL Date: 2024
  • Supply: Limited
  • Popularity: Medium
