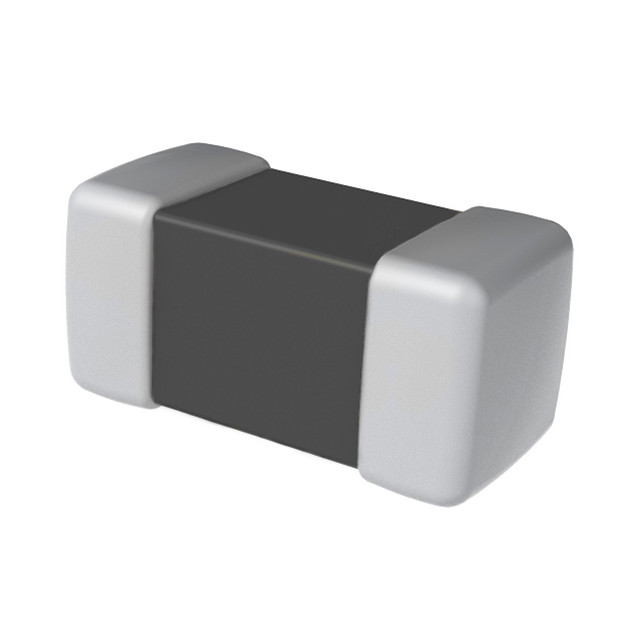

Z1810C102BPWZT Real Image
Same model may have multiple batches, images only for reference.

Z1810C102BPWZT

Part No Z1810C102BPWZT
Manufacturer Kemet
Catalog Ferrite Beads and Chips
Description POWER LINE HIGH IMPEDANCE FERRIT / 1 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1810 (4525 Metric) 3A 60mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr KEMET
Series Z-PWZ
Package Tape & Reel
Product Status Last Time Buy
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 1 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 60mOhm
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1810 (4525 Metric)
Mounting SMD (SMT)
Height (Max) 0.110" (2.80mm)
Dimension 0.177" L x 0.098" W (4.50mm x 2.50mm)
Base Product Number Z1810C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 399-Z1810C102BPWZTCT,399-Z1810C102BPWZTTR,399-Z1810C102BPWZTDKR
Standard Package 1,000
Win Source Part Number 1220042-Z1810C102BPWZT
Ultra Librarian 3D Model Ultra Librarian Z1810C102BPWZT CAD Model

Description

The Z-PWZ series ferrite bead from KEMET is a power line filter designed for use in electronic circuits.

  • Maximum DC Resistance: 60mOhm
  • Current Rating: 3A
  • Mounting Type: Surface-mount
  • Impedance: 1 Ohm @ 100 MHz
  • Operating Temperature Range: -40°C to 125°C
  • Package: Tape and reel
  • Standard Package: 1,000
