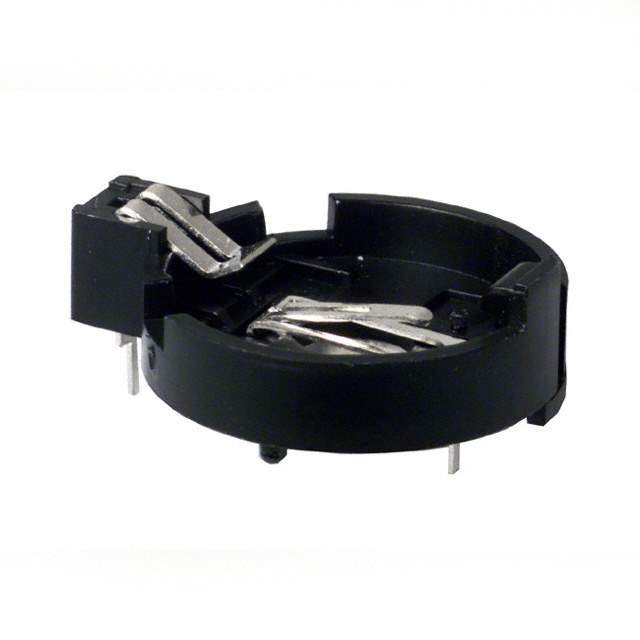

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Approvals UL
Body Material Glass, Nylon
Contact Material Copper, Tin
Contact Plating Tin
Diameter 20 mm
Height 9.47 mm
Lead Free Lead Free
Material Bronze
Max Operating Temperature 145 °C
Min Operating Temperature -50 °C
Mount Holder, PCB, Through Hole
Number of Batteries 1
Number of Cells 1
Packaging Bulk
REACH SVHC No SVHC
RoHS Compliant
Termination PC Pin
Width 22.76 mm
Win Source Part Number 1121429-1066
Categories Battery Accessories
Manufacturer Keystone Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1066 CAD Model

Description

The Keystone Electronics Battery Holder is a copper and tin termination PC pin connector that is perfect for holding batteries in place.

  • Approval: UL approved
  • Packaging: Bulk
  • Popularity: Medium popularity
  • Lead-Free: Yes
  • Mounting: Through hole
  • REACH SVHC: Unaffected
  • HTSUS: Battery Accessories
  • Height: 9.47 mm
  • Width: 22.76 mm
  • Diameter: 20 mm
  • Battery Capacity: 1 battery
  • Alternative Parts: 1066 and 1066...
  • RoHS Compliant: Yes
