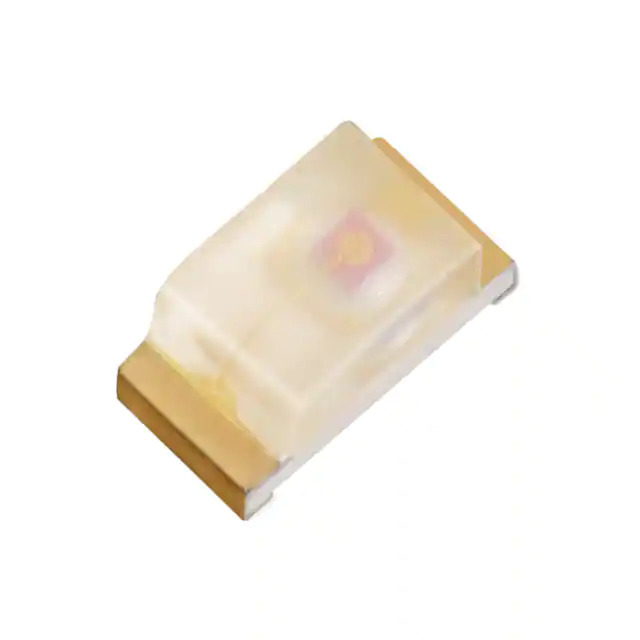

Same model may have multiple batches, images only for reference.
APHHS1005LSECK/J3-PF Kingbright Corporation
Same model may have multiple batches, images only for reference.

APHHS1005LSECK/J3-PF

Part No APHHS1005LSECK/J3-PF
Manufacturer Kingbright Corporation
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD
Datasheet
APHHS1005LSECK/J3-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Series -
Package Tape & Reel
Product Status Active
Color Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd
Lens Style Rectangle with Flat Top
Lens Size 0.80mm x 0.50mm
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 2mA
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 625nm
Wavelength - Peak 640nm
Features -
Package / Case 0402 (1005 Metric)
Supplier Device Package 2-SMD
Size / Dimension 1.00mm L x 0.50mm W
Height (Max) 0.60mm
Base Product Number APHHS1005
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371783-APHHS1005LSECK/J3-PF
Ultra Librarian 3D Model Ultra Librarian APHHS1005LSECK/J3-PF CAD Model

Description

The 1371783-APHHS1005LSECK/J3-PF is a red LED indication diode from Kingbright.

  • Mounting Type: Surface Mount
  • Size: 1.00mm x 0.50mm
  • Voltage Rating: 1.8V
  • Current Rating: 2mA
  • Millicandela Rating: 80mcd
  • Viewing Angle: 120°
  • Dominant Wavelength: 625nm
  • Peak Wavelength: 640nm
  • Package: 0402
  • Configuration: 2-SMD
  • Product Status: Active
  • REACH: Unaffected
