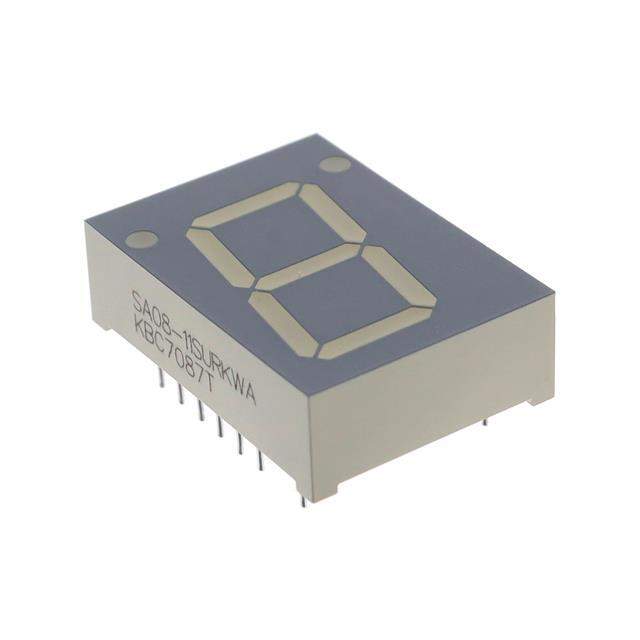

SA08-11SURKWA Real Image
Same model may have multiple batches, images only for reference.

SA08-11SURKWA

Part No SA08-11SURKWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.8" SGL RED 16DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm)
Datasheet
SA08-11SURKWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm)
Digit/Alpha Size 0.80" (20.32mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Millicandela Rating 61mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 75mW
Package / Case 16-DIP (0.600", 15.24mm)
Base Product Number SA08-11
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242615-SA08-11SURKWA
Ultra Librarian 3D Model Ultra Librarian SA08-11SURKWA CAD Model

Description

The Kingbright SA08-11SURKWA is a 7-segment LED display module, commonly used for numeric displays in electronic devices.

  • Color: Red
  • Millicandela Rating: 61mcd
  • Forward Voltage: 1.95V
  • Display Type: 7-Segment
  • Characters: 1
  • Digit/Alpha Size: 0.80 inches (20.32mm)
  • Common Pin: Common Anode
  • Package/Case: 16-DIP (0.600 inches, 15.24mm)
  • Dimension: 1.091 inches H x 0.787 inches W x 0.331 inches D (27.70mm x 20.00mm x 8.40mm)
  • Power Dissipation: 75mW
