Same model may have multiple batches, images only for reference.

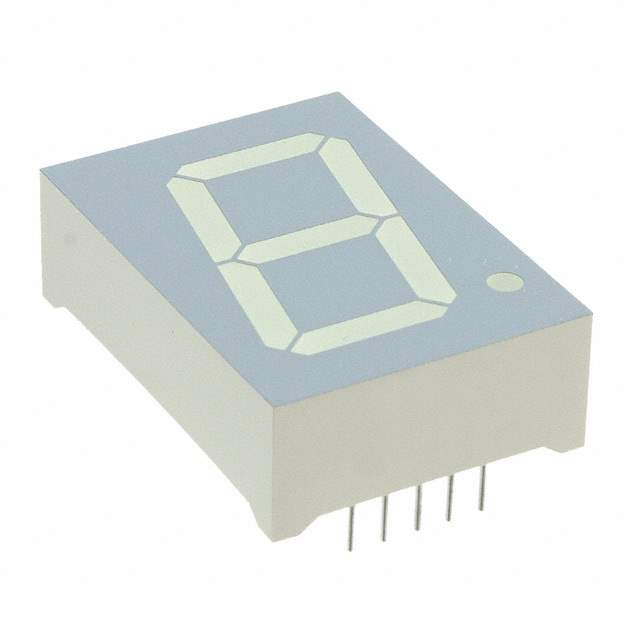

SA10-21SRWA Real Image
Same model may have multiple batches, images only for reference.

SA10-21SRWA

Part No SA10-21SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 1" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.7V 20mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm)
Datasheet
SA10-21SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
Digit/Alpha Size 1.00" (25.40mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 3.7V
Current - Test 20mA
Millicandela Rating 120mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 150mW
Package / Case 10-DIP (1.200", 30.48mm)
Base Product Number SA10-21
Other Names SA10-21SRWA,754-1683-5
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242558-SA10-21SRWA
Ultra Librarian 3D Model Ultra Librarian SA10-21SRWA CAD Model

Description

The Kingbright 1242558-SA10-21SRWA is a red 7-segment LED display module with a common anode.

  • Digit/Alpha Size: 1.00 inch
  • Height: 1.339 inches
  • Width: 0.945 inches
  • Depth: 0.413 inches
  • Voltage: 3.7V
  • Current: 20mA
  • Package: 10-DIP (1.200 inches, 30.48mm)
  • Millicandela Rating: 120mcd
  • Wavelength Peak: 660nm
  • Applications: optoelectronics and display modules
  • Tube: yes
  • Standard Package: 20
  • ECCN: EAR99
  • MSL Level: 1
  • REACH: unaffected
  • HTSUS: 8541.41.0000
