Same model may have multiple batches, images only for reference.

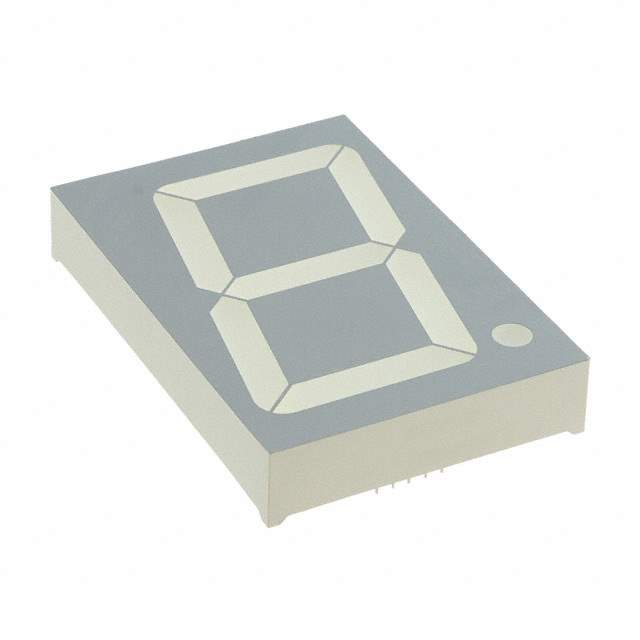

SA23-11SRWA Real Image
Same model may have multiple batches, images only for reference.

SA23-11SRWA

Part No SA23-11SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 2.24" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 7.4V 20mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.370", 60.10mm)
Datasheet
SA23-11SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm)
Digit/Alpha Size 2.24" (56.90mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 7.4V
Current - Test 20mA
Millicandela Rating 190mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 300mW
Package / Case 10-DIP (2.370", 60.10mm)
Base Product Number SA23-11
Other Names 754-1684-5,SA23-11SRWA
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242556-SA23-11SRWA
Ultra Librarian 3D Model Ultra Librarian SA23-11SRWA CAD Model

Description

The Kingbright SA23-11SRWA is a red display module that consists of a 7-segment LED character and numeric component.

  • Digit/Alpha Size: 2.24 inches (56.90mm)
  • Common Anode: yes
  • Package: 10-DIP (2.370 inches, 60.10mm)
  • Millicandela Rating: 190mcd
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Obsolete: yes
