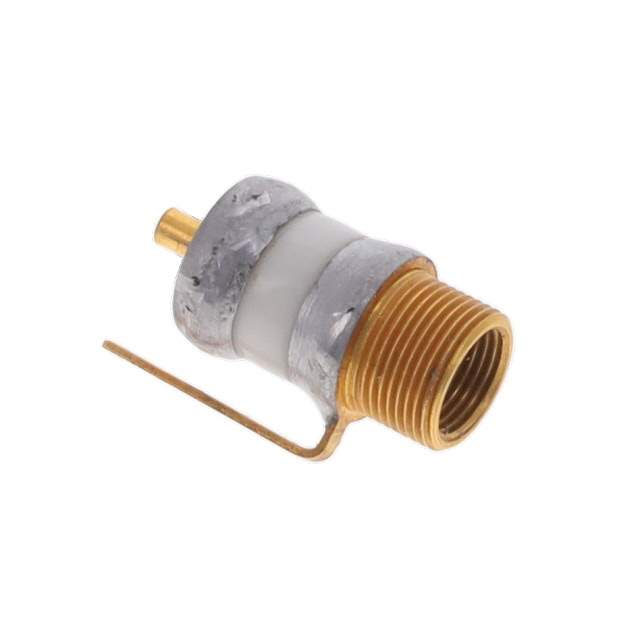

8052 Real Image1 8052 Real Image2
Same model may have multiple batches, images only for reference.
8052 Real Image1 8052 Real Image2
8052 Real Image1 8052 Real Image2
Same model may have multiple batches, images only for reference.

8052

Part No 8052
Manufacturer Knowles Johanson Manufacturing
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 0.8-10PF 250V TH / 0.8 ~ 10pF Trimmer Capacitor 250 V Top Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Trimmers, Variable Capacitors
Mfr Knowles Johanson Manufacturing
Series -
Package Bulk
Capacitance Range 0.8 ~ 10pF
Adjustment Type Top
Voltage - Rated 250 V
Dielectric Material Air
Q @ Freq 5000 @ 100MHz
Size / Dimension 0.295" Dia (7.49mm)
Height - Seated (Max) -
Temperature Range - Operating -65°C ~ 125°C
Mounting Type Through Hole
Features General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Standard Package 10 pcs
Win Source Part Number 1380411-8052
Ultra Librarian 3D Model Ultra Librarian 8052 CAD Model

Description

The 1380411-8052 is a general-purpose variable capacitor designed for use in electronic circuits.

  • Category: Trimmers, Variable Capacitors
  • Diameter: 0.295 inches (7.49mm)
  • Mounting: Through-hole
  • Rated Voltage: 250V
  • Q Value: 5000 @ 100MHz
  • Dielectric Material: Air
  • Adjustment Type: Top
  • Capacitance Range: 0.8pF to 10pF
  • Operating Temperature Range: -65°C to 125°C
  • Manufacturer: Knowles Johanson Manufacturing
  • Compliance: California Prop 65 regulations
  • Package: Bulk package of 10 pieces
