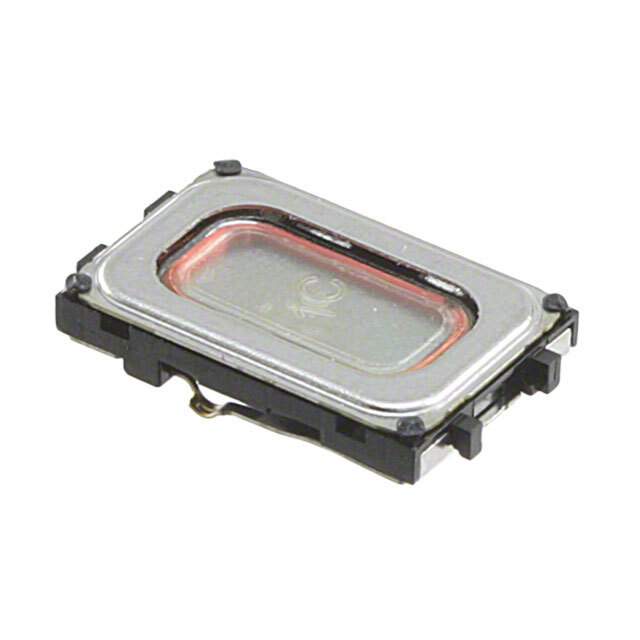

2403 260 00031 Real Image
Same model may have multiple batches, images only for reference.

2403 260 00031

Part No 2403 260 00031
Manufacturer Knowles
Catalog Speakers
Description SPEAKER 32OHM 40MW TOP PORT 85DB / 32 Ohms Receiver Speaker 40 mW 100 Hz ~ 10 kHz Top Rectangular
Datasheet
2403 260 00031 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr Knowles
Package Tape & Reel
Product Status Obsolete
Technology Magnetic
Type Receiver
Frequency Range 100 Hz ~ 10 kHz
Frequency - Self Resonant 350Hz
Impedance 32 Ohms
Efficiency - dBA 68.00
Efficiency - Testing 1W/1M
Efficiency - Type Sensitivity
Power - Rated 40 mW
Power - Max 75 mW
Port Location Top
Shape Rectangular
Material - Cone Polyester
Material - Magnet Nd-Fe-B
Termination Spring Type
Dimension 0.472" L x 0.315" W (12.00mm x 8.00mm)
Height - Seated (Max) 0.085" (2.15mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Other Names 423-1172-1,423-1172-6,240326000031,423-1172-2
Standard Package 1,300
Win Source Part Number 985532-2403 260 00031
Ultra Librarian 3D Model Ultra Librarian 2403 260 00031 CAD Model

Description

The Knowles 985532-2403 260 00031 is a rectangular-shaped receiver type speaker designed for audio products like speakers.

  • Type: Receiver
  • Shape: Rectangular
  • Package: Tape and Reel
  • Termination Type: Spring
  • Impedance: 32 Ohms
  • Frequency Range: 100 Hz to 10 kHz
  • Maximum Power: 75 mW
  • Rated Power: 40 mW
  • Cone Material: Polyester
  • Magnet Material: Nd-Fe-B
  • Height: 0.085 inches
  • Length: 0.472 inches
  • Width: 0.315 inches
  • Efficiency: 68.00 dBA
  • Test Condition: 1W/1M
