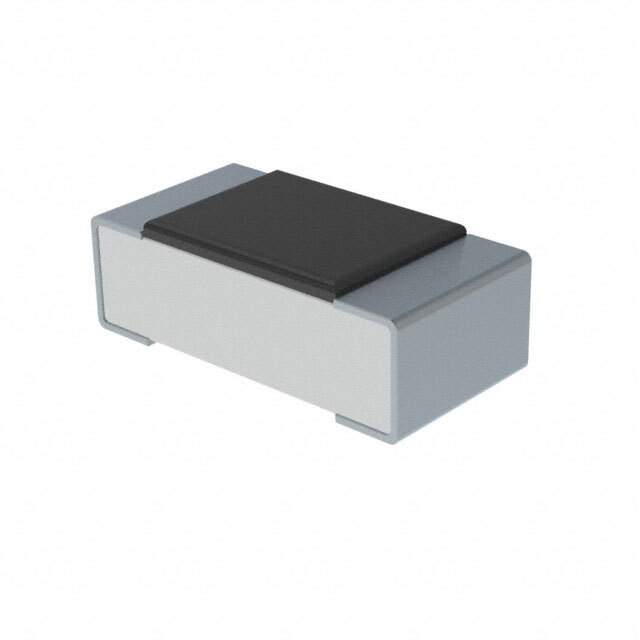

RK73B1JTTD225J Real Image
Same model may have multiple batches, images only for reference.

RK73B1JTTD225J

Part No RK73B1JTTD225J
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 2.2M OHM 5% 1/10W 0603  /  2.2 MOhms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200 Thick Film
Datasheet
RK73B1JTTD225J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series RK73B
Package Tape & Reel
Resistance 2.2 MOhms
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number RK73B1J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-RK73B1JTTD225JCT,2019-RK73B1JTTD225JDKR,2019-RK73B1JTTD225JTR
Standard Package 5,000
Win Source Part Number 972206-RK73B1JTTD225J
Ultra Librarian 3D Model Ultra Librarian RK73B1JTTD225J CAD Model

Description

The RK73B1JTTD225J is a chip resistor from KOA Speer Electronics, Inc.

  • Series: RK73B
  • Ratings: Automotive AEC-Q200
  • Resistance: 2.2 MOhms
  • Power Rating: 0.1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Case/Package: 0603 (1608 Metric)
  • Height: 0.022" (0.55mm)
  • Temperature Range: -55°C to 155°C
