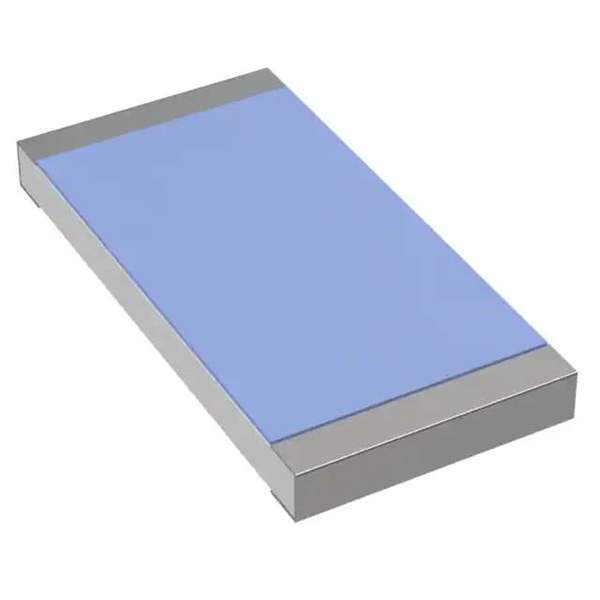

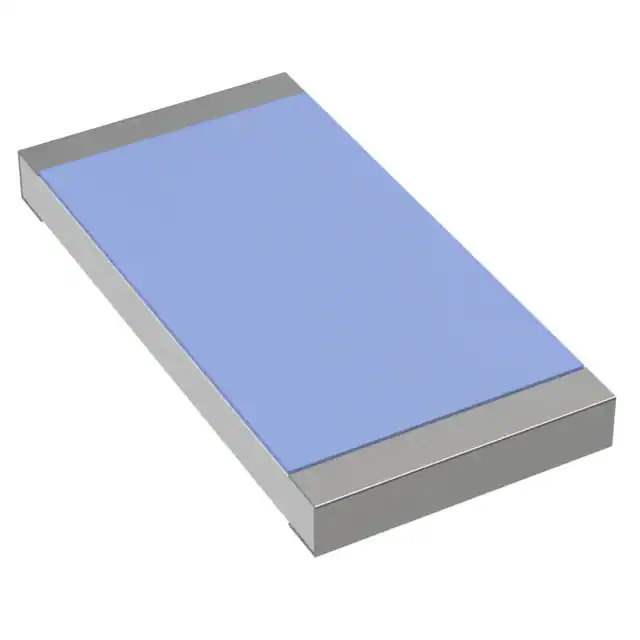

RK73H3ATTE21R5F Real Image
Same model may have multiple batches, images only for reference.

RK73H3ATTE21R5F

Part No RK73H3ATTE21R5F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 21.5 OHM 1% 1W 2512
Datasheet
RK73H3ATTE21R5F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RK73H
Package Tape & Reel
Product Status Active
Resistance 21.5 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.248" L x 0.122" W (6.30mm x 3.10mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number RK73H3A
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 726410-RK73H3ATTE21R5F
Ultra Librarian 3D Model Ultra Librarian RK73H3ATTE21R5F CAD Model

Description

The RK73H3ATTE21R5F is a chip resistor designed for surface mount applications.

  • Series: RK73H
  • Size: 0.248" L x 0.122" W (6.30mm x 3.10mm)
  • Maximum Seated Height: 0.028" (0.70mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 1W
  • Resistance: 21.5 Ohms
  • Package: 2512 (6432 Metric)
  • Packaging: Tape & Reel
  • Automotive Standard: Automotive AEC-Q200
  • Moisture Resistant: Yes
