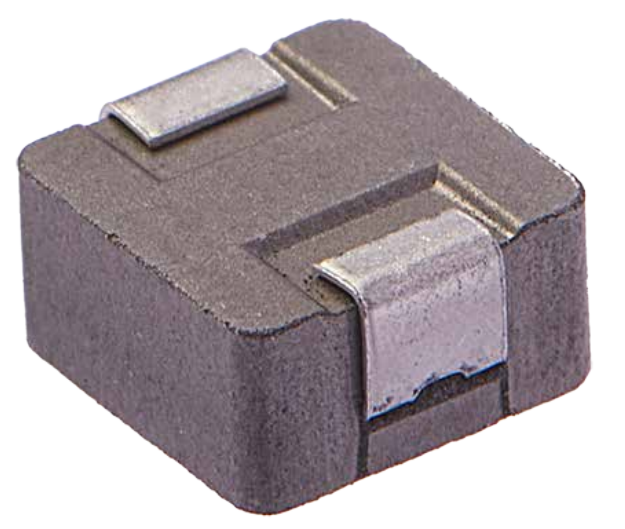

Same model may have multiple batches, images only for reference.

MDA5030-1R5M

Name: MDA5030-1R5M
Brand: KOHER（Shanghai）Electronics Co.,Ltd
SKU: WS1602423
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MDA5030-1R5M
Manufacturer	KOHER（Shanghai）Electronics Co.,Ltd
Catalog	Fixed Inductors
Description	SMD 1.5uH 7.5A 13.6mΩ
Datasheet	MDA5030-1R5M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Saturation Current	7.5A
DC Resistance	13.6mΩ
Application	·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition	150 ~200℃/60~120 sec.
Allowed time above 217℃	60~90 sec.
Max temperature	260℃.
Max time at max temperature	10 sec.
Allowed Reflow time	2x max
Features	Shielded construction Capable of corresponding high frequency . Low loss realized with low DCR."High performance (lsat) realized by metal dust core."Ultra low buzz noise,due to composite construction."100% Lead(Pb)-Free and RoHS compliant."
AEC-Q200 qualified Operating temperature	-55 to +155"C (including self-temperature rise)"
Quantity	2000PCs
Ultra Librarian 3D Model	Ultra Librarian MDA5030-1R5M CAD Model
