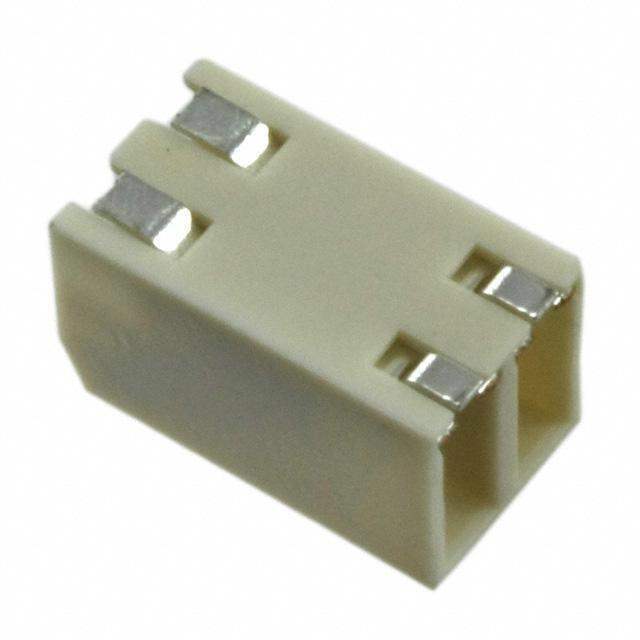

Same model may have multiple batches, images only for reference.
009276002021106
Same model may have multiple batches, images only for reference.

009276002021106

Part No 009276002021106
Manufacturer Kyocera International Inc. Electronic Components
Catalog Terminal Blocks
Description TERM BLK 2POS SIDE ENT 2.5MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202742-009276002021106
Manufacturer KYOCERA AVX
Category Connectors, Interconnects -Terminal Blocks- Wire to Board
Series 9276
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.098" (2.50mm)
Mating Orientation Horizontal with Board
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 009276002021106 CAD Model

Description

The 9276 series from KYOCERA AVX is a line of wire-to-board terminal blocks.

  • Model: 1202742
  • Positions: 2
  • Pitch: 0.098" (2.50mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Mating Orientation: Horizontal
  • Status: Active
