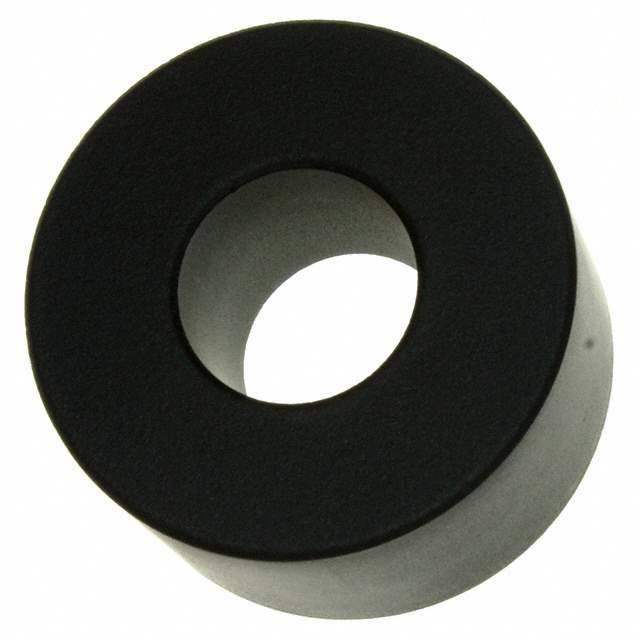

28B1540-000 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28B1540-000

Part No 28B1540-000
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 254 OHM SOLID
Datasheet
28B1540-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206255-28B1540-000
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28
Package Tray
Product Status Active
Type Round
Design Solid
Impedance @ Frequency 254Ohm @ 100MHz
Inner Dimension 0.660" Dia (16.76mm)
Outer Dimension 1.540" Dia (39.12mm)
Mounting Type Free Hanging
Ultra Librarian 3D Model Ultra Librarian 28B1540-000 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
