Same model may have multiple batches, images only for reference.

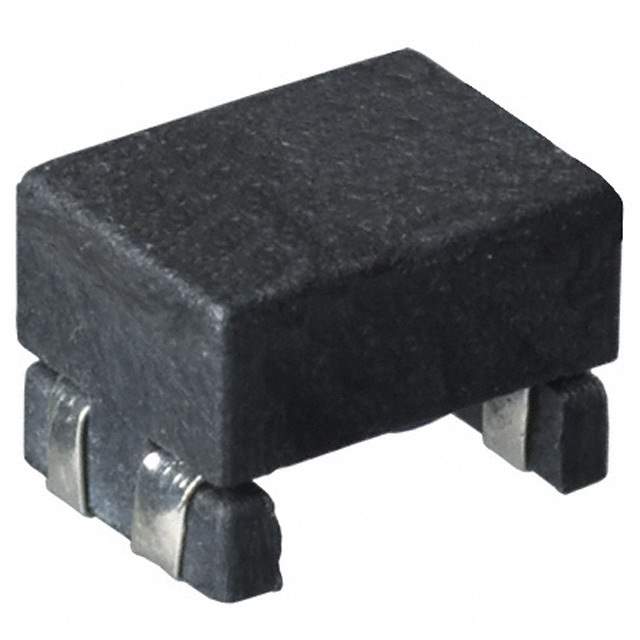

CC1812C513R-10 Real Image
Same model may have multiple batches, images only for reference.

CC1812C513R-10

Part No CC1812C513R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 51UH 200MA 2LN 3.5 KOHM SMD
Datasheet
CC1812C513R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3.5 kOhm @ 40MHz
Inductance @ Frequency 51μH @ 100kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 500 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.140" (3.55mm)
Dimension Horizontal, 4 Flat Lead
Win Source Part Number 012761-CC1812C513R-10
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CC1812C513R-10 CAD Model

Description

CC1812C513R-10 Ceramic Capacitor

The CC1812C513R-10 is a ceramic capacitor known for its efficiency and long service life. This versatile component is suitable for various electronic boards and systems, ensuring reduced energy losses and increased reliability.

  • Applications/Projects:
    • Audio equipment
    • DC-DC converters
    • Computers and peripherals
    • Analog and digital circuits
  • Features and Benefits:
    • Excellent dielectric performance
    • Wide capacitance range
    • Compact and robust design
    • Stable performance under varying environmental conditions
  • Additional Details:

    The CC1812C513R-10 is designed to provide superior insulation and interference reduction, making it an essential component for maintaining the integrity and performance of electrical circuits.
