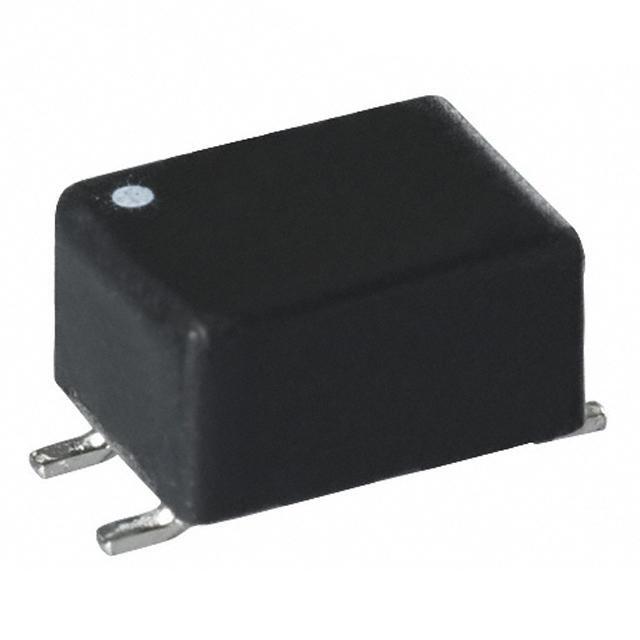

CC2824E253R-10 Laird-Signal Integrity Products CC2824E253R-10 Real Image
Same model may have multiple batches, images only for reference.
CC2824E253R-10 Laird-Signal Integrity Products CC2824E253R-10 Real Image
CC2824E253R-10 Laird-Signal Integrity Products CC2824E253R-10 Real Image
Same model may have multiple batches, images only for reference.

CC2824E253R-10

Part No CC2824E253R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 25UH 800MA 2LN 2 KOHM SMD
Datasheet
CC2824E253R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2 kOhm @ 100MHz
Inductance @ Frequency 25μH @ 100kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 260 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.193" (4.90mm)
Dimension Horizontal, 4 Flat Lead
Win Source Part Number 113740-CC2824E253R-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CC2824E253R-10 CAD Model

Description

CC2824E253R-10

The CC2824E253R-10 is a reliable component suitable for high-speed data transmission applications. It provides enhanced signal integrity and operates effectively across broad temperature ranges, making it versatile for various industrial uses.

  • Applications/Projects: Data communication networks, Automotive electronics, and Sensor networks.
  • Features and Benefits: High-speed data transmission, robust performance in harsh environments, and exceptional electromagnetic compatibility.
  • Additional Details: Complies with international safety standards, ensuring reliability and safety in critical applications.
