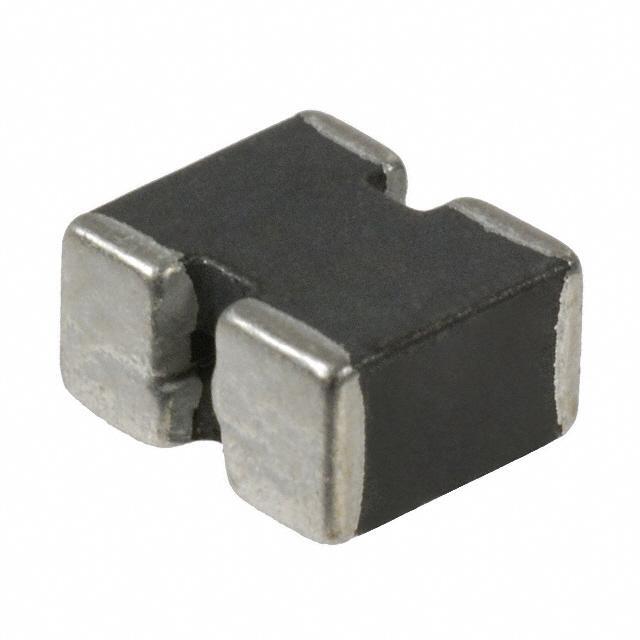

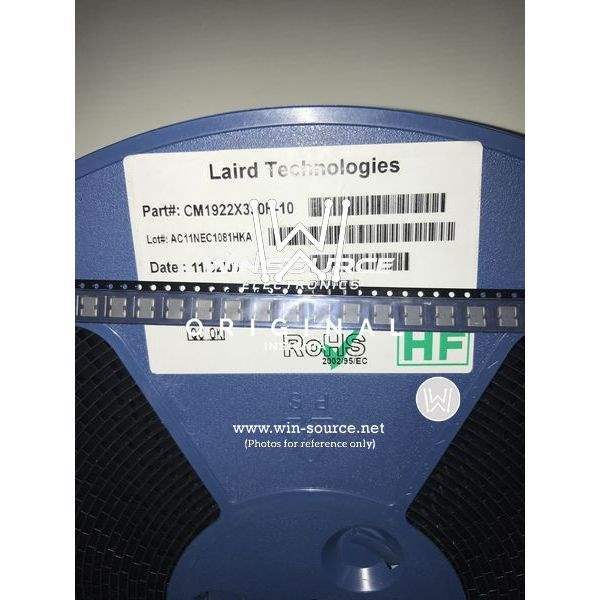

CM1922X330R-10 Laird-Signal Integrity Products CM1922X330R-10 Real Image CM1922X330R-10 real image
Same model may have multiple batches, images only for reference.
CM1922X330R-10 Laird-Signal Integrity Products CM1922X330R-10 Real Image CM1922X330R-10 real image
CM1922X330R-10 Laird-Signal Integrity Products CM1922X330R-10 Real Image CM1922X330R-10 real image
Same model may have multiple batches, images only for reference.

CM1922X330R-10

Part No CM1922X330R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 10A 2LN 33 OHM SMD
Datasheet
CM1922X330R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 33 Ohm @ 100MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 3 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.122" (3.10mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 135787-CM1922X330R-10
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Defence, Military & Aerospace
Family Name CM
Introduction Date February 19, 2008
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CM1922X330R-10 CAD Model

Description

CM1922X330R-10: High-Efficiency Component for Modern Electronics

CM1922X330R-10 is engineered for efficiency and performance. This component is especially suitable for modern electronic applications that demand precision and reliability.

  • Applications:
    • Battery management systems
    • Automated control units
    • Smart home devices
  • Features and Benefits:
    • Superior efficiency leading to energy savings
    • Enhanced thermal management properties
    • Reliable performance in a compact form factor
  • Additional Details:

    The CM1922X330R-10 uses advanced technology to minimize energy loss, making it an environmentally friendly choice. It is an ideal component to optimize the performance and efficiency of electronic systems.
