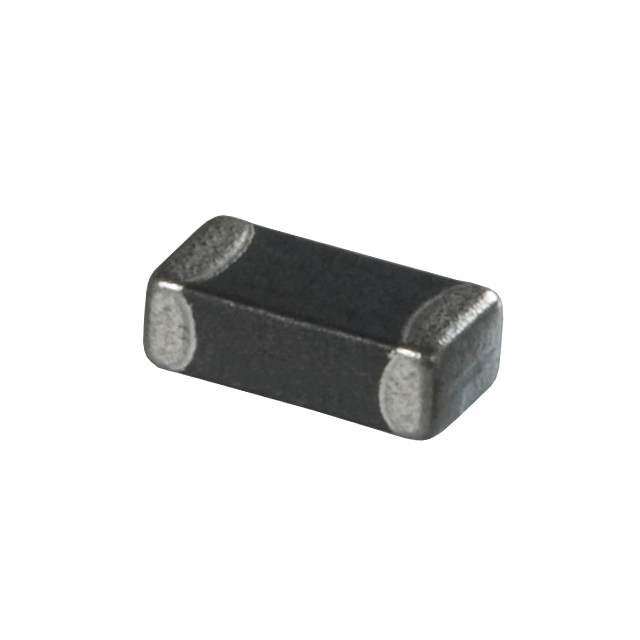

HI1206N800R-10 Real Image
Same model may have multiple batches, images only for reference.

HI1206N800R-10

Part No HI1206N800R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 MOHM 1206 1LN
Datasheet
HI1206N800R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 35 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 110501-HI1206N800R-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI1206N800R-10 CAD Model

Description

The Laird-Signal Integrity Products 110501-HI1206N800R-10 is a power and signal line filter in a reel - TR packaging. It has a size of 0.126" L x 0.063" W (3.20mm x 1.60mm) and a maximum height of 0.051" (1.30mm). This SMD (SMT) filter has a maximum current rating of 3A and an impedance of 80 Ohm @ 100MHz. The DC resistance (DCR) is 35 mOhm Max, and it is compliant with ROHS3 regulations. The temperature range for operating this filter is -40°C to 125°C.
