Same model may have multiple batches, images only for reference.

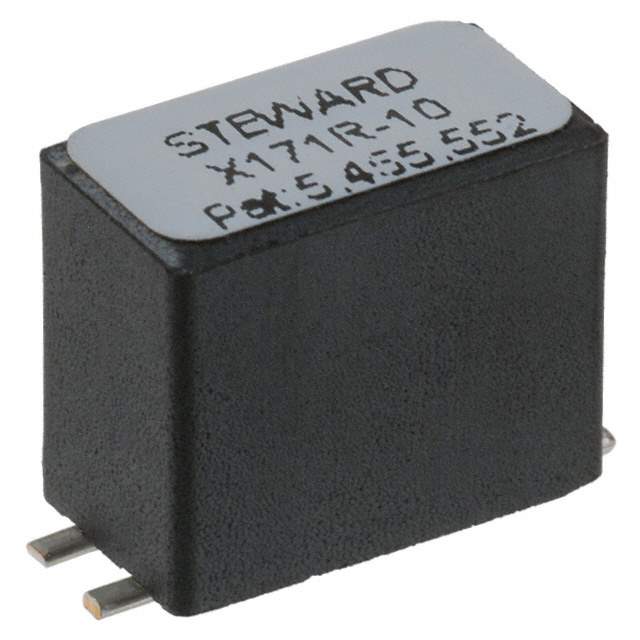

CM2545X171R-00 Real Image
Same model may have multiple batches, images only for reference.

CM2545X171R-00

Part No CM2545X171R-00
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 10A 2LN 170 OHM SMD
Datasheet
CM2545X171R-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2 Line Common Mode Choke Surface Mount 170 Ohms @ 100 MHz 10A DCR 3mOhm
Manufacturer Laird-Signal Integrity Products
Series CM
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package Vertical, 8 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 240-1106-6, 240-1106-2, CM2545X171R00, 240-1106-1
Quantity per package 400
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866867-CM2545X171R-00
Ultra Librarian 3D Model Ultra Librarian CM2545X171R-00 CAD Model

Description

The CM2545X171R-00 is a 2 line common mode choke surface mount from Laird-Signal Integrity Products.

  • Type: 2 line common mode choke
  • Mounting Type: Surface Mount
  • Series: CM
  • Package Size: Vertical, 8 PC pin
  • Operating Temperature: from -55°C to 125°C
  • Resistance: 170 Ohms @ 100 MHz
  • DCR (Max): 3mOhm
  • Packaging: Reel
  • Package Quantity: 400
  • Lifecycle Status: Obsolete
  • Popularity: Medium
