Same model may have multiple batches, images only for reference.

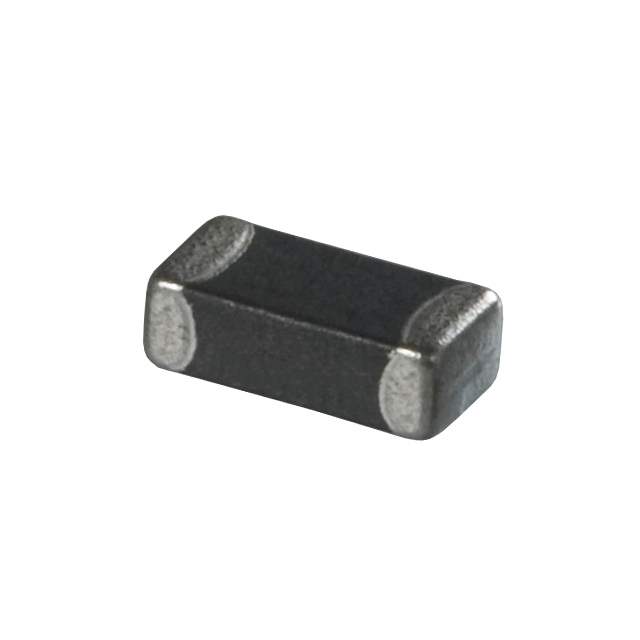

HI1206T500R-10 Real Image
Same model may have multiple batches, images only for reference.

HI1206T500R-10

Part No HI1206T500R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 50 OHM 1206 1LN
Datasheet
HI1206T500R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 50 Ohm @ 100MHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 10 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 016955-HI1206T500R-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI1206T500R-10 CAD Model

Description

The HI1206T500R-10 is a power and signal line filter manufactured by Laird-Signal Integrity Products. It has a current rating of 6A and an impedance of 50 Ohm @ 100MHz. This filter is ideal for use in electronic devices and systems that require power and signal line filtering. Its supply and demand status is balanced.
