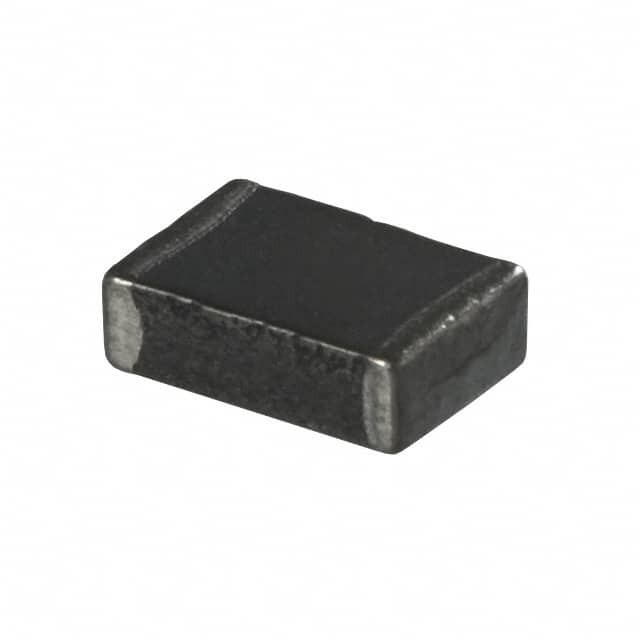

Same model may have multiple batches, images only for reference.
HI1812V101R-10
Same model may have multiple batches, images only for reference.

HI1812V101R-10

Part No HI1812V101R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 1812 1LN / 100 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1812 (4532 Metric) 8A 10mOhm
Datasheet
HI1812V101R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Laird-Signal Integrity Products
Series 1812
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 100 Ohms @ 100 MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 10mOhm
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Height (Max) 0.055" (1.40mm)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Standard Package 2,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 846353-HI1812V101R-10
Ultra Librarian 3D Model Ultra Librarian HI1812V101R-10 CAD Model

Description

The Laird-Signal Integrity Products 846353-HI1812V101R-10 is a ferrite bead and chip filter.

  • Series: 1812
  • Package: Tape & reel
  • Size / Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Current - Max: 8A
  • Standard Package Quantity: 2,500 pieces
  • Filtering: Power and Signal Line
  • Height: 0.055" (1.40mm)
  • Number of Lines: 1
  • Impedance @ Frequency: 100 Ohms @ 100 MHz
  • DCR: 10mOhm max
  • Mounting Type: Surface Mount
  • Package / Case: 1812 (4532 Metric)
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
