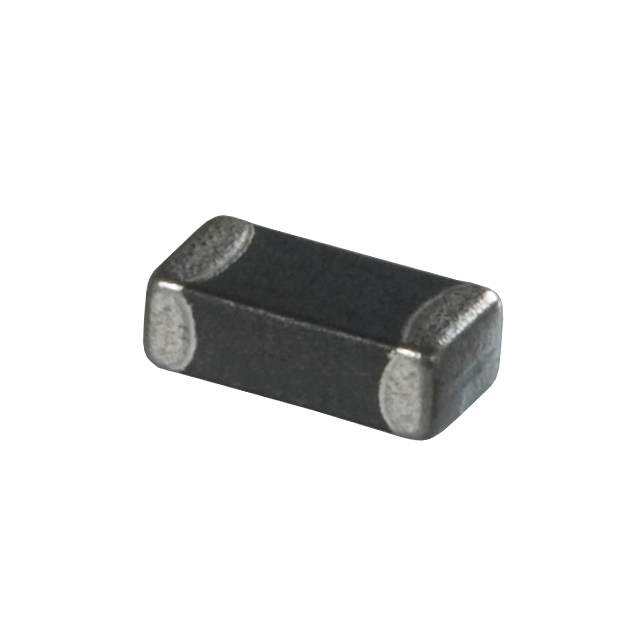

HZ1206C202R-10 Real Image
Same model may have multiple batches, images only for reference.

HZ1206C202R-10

Part No HZ1206C202R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 915 OHM 1206 1LN
Datasheet
HZ1206C202R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 915 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 500 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 1044409-HZ1206C202R-10
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HZ1206C202R-10 CAD Model

Description

The 1044409-HZ1206C202R-10 is a signal line ferrite filter that is used to suppress electromagnetic interference in electronic circuits from Laird-Signal Integrity Products.

  • Impedance: 915 Ohms @ 100MHz
  • Current Rating: 300mA
  • DC Resistance: 500 mOhm
  • Package: 1206 (3216 Metric)
  • Dimension: 0.126 inches x 0.063 inches
  • Operating Temperature Range: -40°C to 125°C
