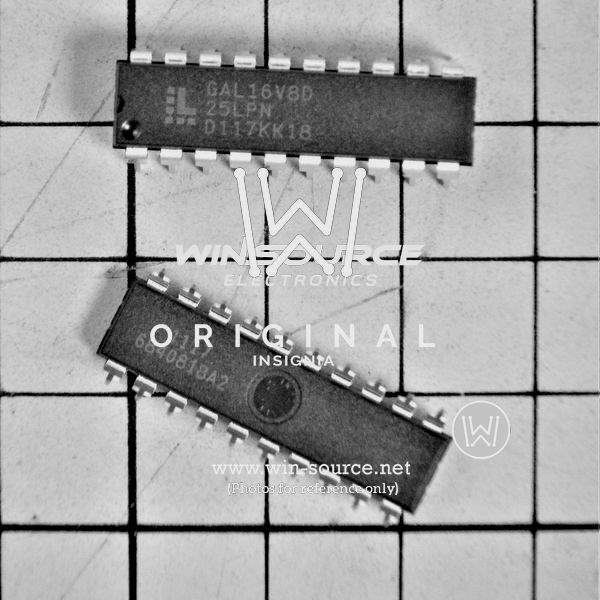

GAL16V8D-25LPN Real Image GAL16V8D-25LPN real image4483
Same model may have multiple batches, images only for reference.
GAL16V8D-25LPN Real Image GAL16V8D-25LPN real image4483
GAL16V8D-25LPN Real Image GAL16V8D-25LPN real image4483
Same model may have multiple batches, images only for reference.

GAL16V8D-25LPN

Part No GAL16V8D-25LPN
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 8MC 25NS 20DIP
Datasheet
GAL16V8D-25LPN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Lattice Semiconductor Corporation
Packaging Bulk
Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 25.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Macrocells 8
Temperature Range - Operating 0°C to 75°C (TA)
Mounting Through Hole
Case / Package 20-PDIP
Win Source Part Number 016657-GAL16V8D-25LPN
Family Name GAL16V8
Introduction Date July 29, 2004
ECCN EAR99
Country of Origin Indonesia, Philippines
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GAL16V8D-25LPN CAD Model

Description

The Lattice Semiconductor Corporation's electronic component with Win Source Part Number 016657-GAL16V8D-25LPN is an obsolete (EOL) product with high popularity.

  • Win Source Part Number: 016657-GAL16V8D-25LPN
  • Type: EE PLD Programmable
  • Macrocells: 8
  • Delay Time tpd(1) Max: 25.0ns
  • Voltage Supply - Internal: 4.75 V to 5.25 V
  • Temperature Range: 0°C to 75°C (TA)
  • Mounting: Through-Hole
  • Package: 20-PDIP
  • Status: Obsolete (EOL)
