Same model may have multiple batches, images only for reference.

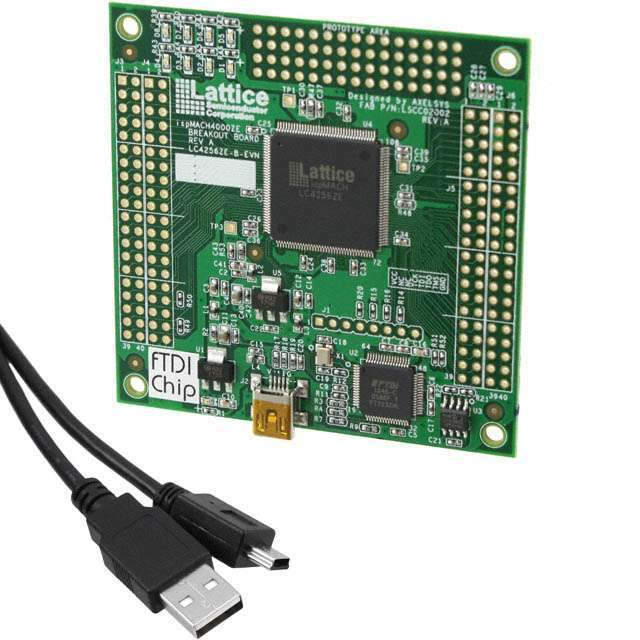

LC4256ZE-B-EVN Real Image
Same model may have multiple batches, images only for reference.

LC4256ZE-B-EVN

Part No LC4256ZE-B-EVN
Manufacturer Lattice Semiconductor Corporation
Catalog Evaluation Boards - Embedded - ComplexLogic (FPGA, CPLD)
Description BOARD BREAKOUT ISPMACH 4256ZE / LC4256ZE-5TN144C series CPLD Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr Lattice Semiconductor Corporation
Series ispMACH®4000ZE
Package Box
Type CPLD
For Use With/Related Products LC4256ZE-5TN144C
Contents Board(s), Cable(s)
Base Product Number LC4256
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 4A994I
HTSUS 8473.30.1180
Other Names LC4256ZEBEVN,220-1146
Standard Package 1
Win Source Part Number 1068918-LC4256ZE-B-EVN
Ultra Librarian 3D Model Ultra Librarian LC4256ZE-B-EVN CAD Model

Description

The LC4256ZE-B-EVN is a development board for evaluation of ISP (in-system programmable) CPLDs (complex programmable logic devices).

  • Application: Embedded applications that require high-speed logic and interface bridging
  • For Use With/Related Products: LC4256ZE-5TN144C device
  • Supplied Contents: Board(s) and cable(s)
  • Packaging: Box
  • Series: ispMACH®4000ZE
  • Product Type: Development Boards, Kits, Programmers
  • Category: Evaluation Boards
  • REACH: Unaffected
  • MSL: 1 (unlimited)
  • HTSUS: 8473.30.1180
  • Manufacturer: Lattice Semiconductor Corporation
