Same model may have multiple batches, images only for reference.

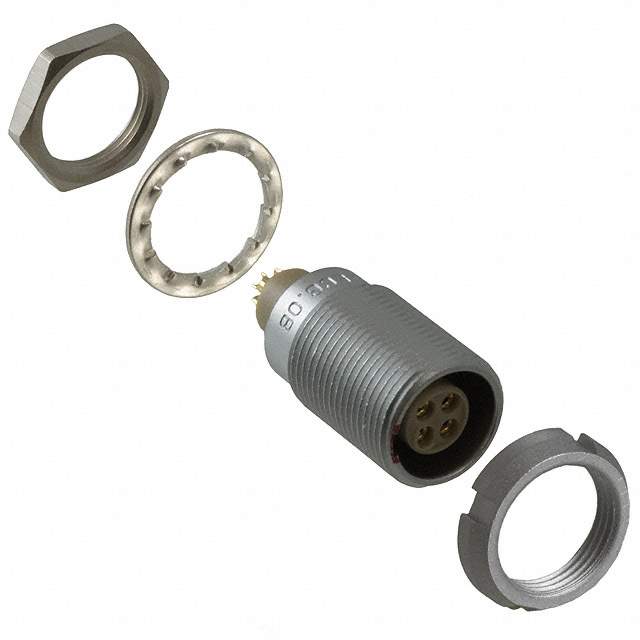

ECG.0B.304.CLL Real Image
Same model may have multiple batches, images only for reference.

ECG.0B.304.CLL

Part No ECG.0B.304.CLL
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 4P GOLD SLDR CUP / 4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
ECG.0B.304.CLL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 0B
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert 304
Mounting Type Panel Mount
Mounting Feature Front and Rear Side Nut
Termination Solder Cup
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP50 - Dust Protected
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 7A
Temperature Range - Operating -55°C ~ 250°C
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Base Product Number ECG.0B
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1338063-ECG.0B.304.CLL
Ultra Librarian 3D Model Ultra Librarian ECG.0B.304.CLL CAD Model

Description

The LEMO ECG.0B.304.CLL is a circular connector assembly that belongs to the 0B series.

  • Positions: 4
  • Color: Silver
  • Connector Type: Receptacle, Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Bronze
  • Ingress Protection: IP50 - Dust Protected
  • Material Flammability Rating: UL94 V-0
  • Orientation: G
  • Standard Package: 1
  • Mounting Feature: Front and Rear Side Nut
  • Shell Size-Insert: 304
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 59.0μin (1.50μm)
  • Mounting Location: Panel Mounted
  • Operating Temperature: -55°C to 250°C
  • Shell Material: Brass
  • Shell Finish: Chrome
  • Insert Material: Polyetheretherketone (PEEK)
  • ECCN: EAR99
  • REACH Status: Unaffected
  • Current Rating (Amps): 7A
  • Base Product Number: ECG.0B
  • Primary Material: Metal
  • California Prop 65: Compliant
