The SD211DE is a monolithic dual N-channel JFET designed and manufactured by Linear Integrated Systems. It's primarily intended for use in applications demanding low noise, high input impedance, and excellent common-mode rejection.

Applications:

• Differential amplifiers
• Source followers
• Analog switches
• High-impedance preamplifiers
• Instrumentation amplifiers

Features:

• Low noise: Typically 1.4 nV/√Hz
• High input impedance: Typically 10^11 ohms
• High common-mode rejection ratio (CMRR)
• Excellent matching characteristics between the two channels
• Low input capacitance
• Fast switching speed

Benefits:

• Improved signal-to-noise ratio in sensitive analog circuits.
• Reduced loading effects on signal sources due to high input impedance.
• Rejection of unwanted common-mode signals in differential amplifier configurations.
• Stable and predictable performance due to closely matched device characteristics.
• Minimal signal distortion and accurate signal reproduction.

Additional Details:

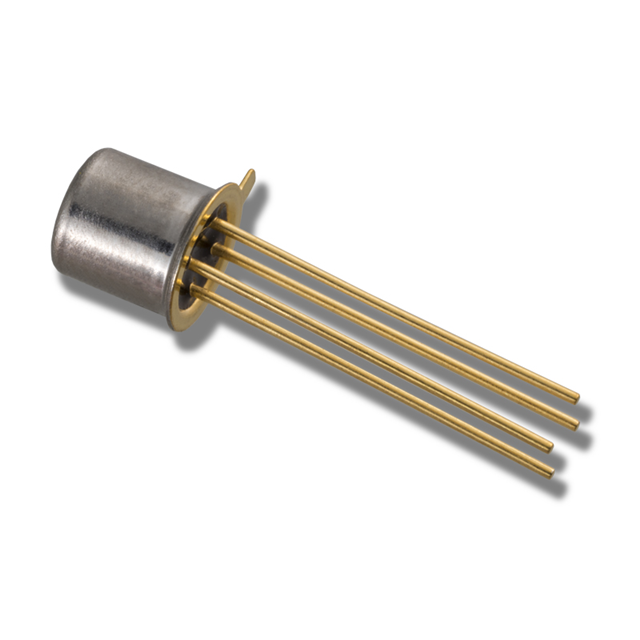

The SD211DE consists of two N-channel JFETs fabricated on a single monolithic die. This ensures close matching of electrical parameters, such as VGS(off) and IDSS, which is crucial for optimal performance in differential amplifier applications. The device is typically supplied in a through-hole package (TO-71 or similar). The gate-source cutoff voltage, VGS(off), is typically between -0.5V and -3.0V, and the drain saturation current, IDSS, is in the range of 2mA to 8mA. The precise values will be specified in the datasheet for a particular batch or grade of the device. Careful attention should be paid to biasing the JFETs correctly to achieve the desired operating point for the application. Proper shielding and grounding techniques are also important to minimize noise pickup in sensitive circuits.
