Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Linear Technology
Main Purpose DC/DC, Step Up
Outputs and Type 1, Non-Isolated
Voltage - Output 12V
Output Current 250mA
Voltage - Input 2.7 V ~ 11 V
Regulator Topology Boost
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LT1372
Win Source Part Number 780411-DC053A-A
Popularity Medium
Supply and Demand Status Limited
Introduction Date March 09, 1998
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DC053A-A CAD Model

Description

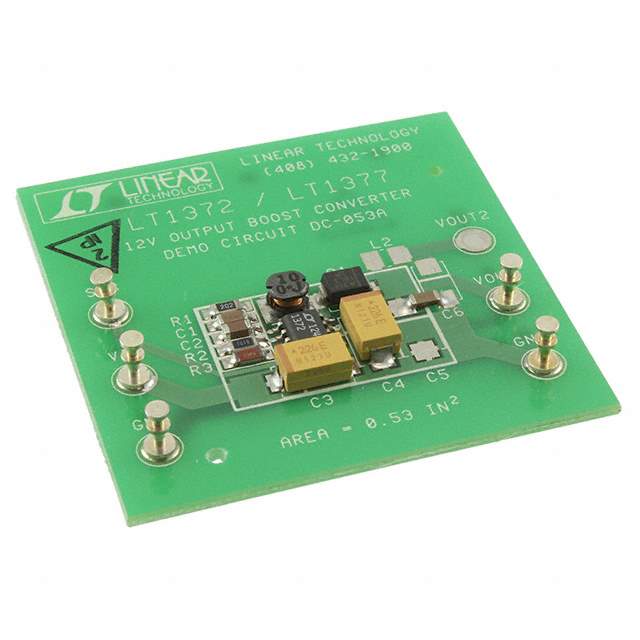

Linear Technology's DC053A-A - A High-Efficiency Power Solution

Linear Technology's DC053A-A is a cutting-edge power management module designed to cater to the demanding needs of modern electronic devices. This high-efficiency, easy-to-use power solution is perfect for a wide range of applications, including telecommunications, computing, and industrial systems. The DC053A-A stands out for its compact size, robust performance, and exceptional reliability.

Key Features

  • High Efficiency: The DC053A-A is engineered to maximize power conversion efficiency, thereby reducing energy loss and heat generation.
  • Adjustable Output Voltage: Users can tailor the output voltage to suit their specific requirements, ensuring compatibility with a variety of circuits and applications.
  • Thermal Protection: The module includes built-in thermal protection features to safeguard against overheating, enhancing the longevity and safety of both the module and the end application.
  • Low Noise Operation: Designed with noise-sensitive applications in mind, the DC053A-A minimizes electromagnetic interference, providing a stable and quiet power supply.
  • Flexible Input Voltage Range: The DC053A-A supports a broad input voltage range, making it versatile for use in different power environments and systems.

Applications

The versatility of the DC053A-A allows it to be used across various domains. It's an ideal choice for powering sensitive electronic equipment where stable and reliable power is crucial. Applications include, but are not limited to, data communication equipment, portable devices, network infrastructure, and complex industrial machines.

Why Choose DC053A-A?

Linear Technology's commitment to quality and performance is evident in the DC053A-A module. With its high efficiency, adjustable output, and comprehensive protection features, it stands as a top-tier power management solution. Whether for development or integration into existing systems, the DC053A-A is engineered to meet the stringent requirements of today's electronic devices, ensuring optimal performance and power delivery.
