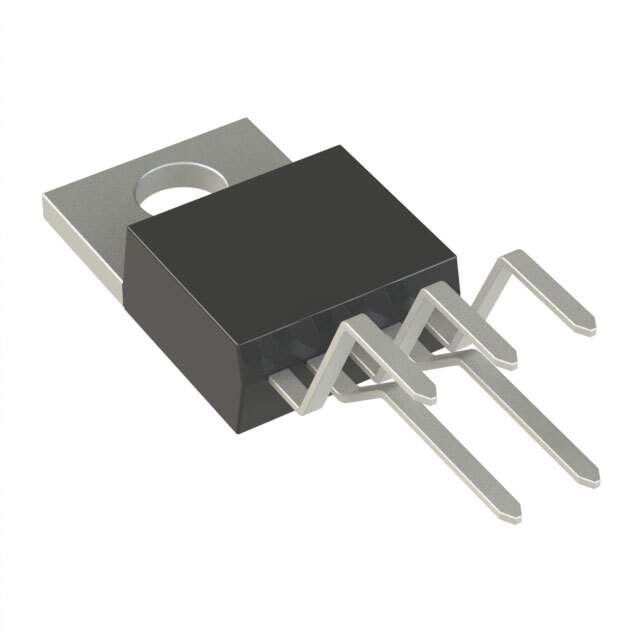

LT1071HVCT#PBF

Part No LT1071HVCT#PBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG MULT CONFIG INV ADJ TO220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Purpose Step-Up, Step-Down, Step-Up/Step-Down
Topology Buck, Boost, Cuk, Flyback, Forward Converter
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3V
Maximum Input Voltage 60V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 75V (Switch)
Output Current 2.5A (Switch)
Frequency - Switching 40kHz
Synchronous Rectifier No
Temperature Range - Operating 0°C to 100°C (TJ)
Mounting Through Hole
Case / Package TO-220-5
Win Source Part Number 1057718-LT1071HVCT#PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT1071HVCT#PBF CAD Model

Description

The LT1071HVCT#PBF is a versatile and robust power conversion IC from Linear Technology, designed to offer high efficiency and reliability in a wide range of applications. This step-down switching regulator is part of the LT1071 series and is particularly well-suited for high voltage applications due to its enhanced specifications.

Key Features

  • High Voltage Capability: The LT1071HVCT#PBF is capable of handling input voltages up to 60V, making it ideal for automotive, industrial, and telecommunication systems that require a stable power supply even under high input voltage conditions.
  • Adjustable Switching Frequency: This device allows for an adjustable switching frequency from 100kHz to 200kHz, which can be optimized for efficiency or minimized external component size based on the application needs.
  • High Output Power: The LT1071HVCT#PBF can deliver up to 2.5A of output current, which translates to a substantial power output for a wide array of electronic devices and systems.
  • Thermal Protection: With built-in thermal shutdown, the device ensures protection against overheating, thereby enhancing the longevity and reliability of both the regulator and the overall system.
  • Versatile Operation Modes: It offers multiple operation modes, including fixed output, adjustable output, and negative output, providing flexibility in design for various circuit configurations.

Applications

The LT1071HVCT#PBF is a highly adaptable component that can be used in a multitude of applications. It is particularly useful in situations where a high input voltage needs to be stepped down efficiently. Common applications include but are not limited to power supplies for battery chargers, automotive accessories, and industrial power systems.

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LT1071HVCT#PBF is no exception. This product is manufactured with precision and is subjected to rigorous testing to ensure it meets the high standards expected from Linear Technology components. The device is available in a thermally enhanced TO-220 package, offering excellent power dissipation characteristics for challenging environments.
