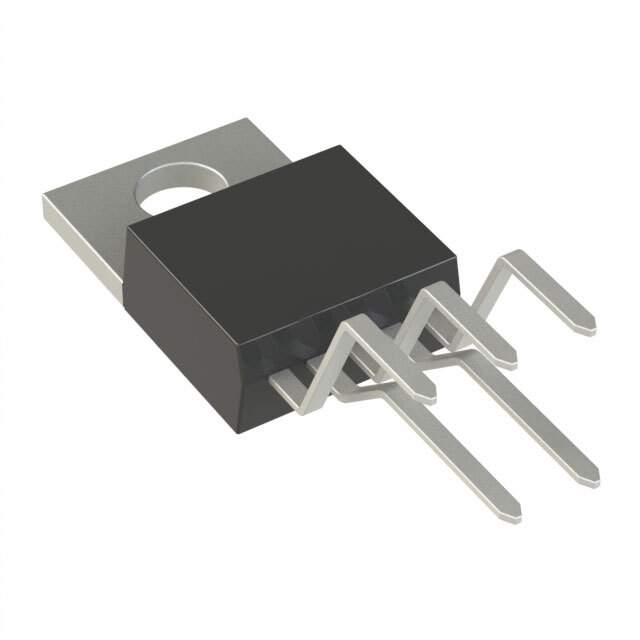

LT1171HVCT#PBF

Part No LT1171HVCT#PBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG MULT CONFIG INV ADJ TO220
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Purpose Step-Up, Step-Down, Step-Up/Step-Down
Topology Buck, Boost, Cuk, Flyback, Forward Converter
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3V
Maximum Input Voltage 60V
Nominal Output Voltage (Min/Fixed) 1.244V
Maximum Output Voltage 75V (Switch)
Output Current 2.5A (Switch)
Frequency - Switching 100kHz
Synchronous Rectifier No
Temperature Range - Operating 0°C to 100°C (TJ)
Mounting Through Hole
Case / Package TO-220-5
Win Source Part Number 143182-LT1171HVCT#PBF
Ultra Librarian 3D Model Ultra Librarian LT1171HVCT#PBF CAD Model

Description

Product Overview: LT1171HVCT#PBF

The LT1171HVCT#PBF is a versatile and robust high power switch mode regulator from Linear Technology, designed to offer efficient power conversion with a wide input voltage range. This component is part of the LT1171 series, which is known for its high efficiency, reliability, and ease of use in various power supply applications.

Key Features

  • High Efficiency: The LT1171HVCT#PBF boasts a high efficiency of up to 90%, minimizing heat generation and power loss in systems where efficiency is critical.
  • Wide Input Voltage Range: With an input voltage range of 3V to 60V, this regulator can accommodate a broad spectrum of power sources, making it suitable for applications with fluctuating input voltages.
  • Adjustable Switching Frequency: Users can set the switching frequency anywhere from 100kHz to 200kHz, allowing for flexibility in balancing efficiency and component size.
  • High Output Power: The LT1171HVCT#PBF can deliver output power up to 2.5W, making it an excellent choice for high-power applications.
  • Versatile Operation Modes: It supports both step-down (buck) and step-up (boost) configurations, as well as inverting topologies, providing design flexibility.
  • Thermal Protection: Integrated thermal shutdown ensures the device operates within safe temperature limits, enhancing the longevity and reliability of the regulator.
  • Minimal External Components: The design requires only a few external components, which reduces board space and simplifies the overall design process.

Applications

The LT1171HVCT#PBF is ideal for a range of applications, including but not limited to:

  • Telecommunications systems
  • Automotive power supplies
  • Industrial power supplies
  • Battery-operated devices
  • Portable instruments

Quality and Reliability

Linear Technology ensures that the LT1171HVCT#PBF meets high standards of quality and reliability, making it suitable for mission-critical applications where consistent performance is a necessity. The product is available in a thermally efficient TO-220 package, providing an optimal solution for power management challenges.

Conclusion

With its high efficiency, broad input voltage range, and versatile functionality, the LT1171HVCT#PBF from Linear Technology stands out as a powerful and reliable switch mode regulator suitable for a wide array of electronic applications.
