The LT1963AEQ#TRPBF is a high-performance, low dropout linear regulator from Linear Technology, designed to deliver a continuous output current up to 1.5A with a dropout voltage of just 340mV at full load. This device is a member of a family of fast, ultra-low noise linear regulators which offer very low output noise and very fast transient response, making them perfect for high-end applications where a noiseless and stable power supply is crucial.

Key Features

• Output Current: Capable of delivering up to 1.5A of continuous output current.
• Low Dropout Voltage: Only 340mV dropout at full load enhances efficiency and allows for closer regulation to the input power supply.
• Adjustable Output: Users can set the output voltage from 1.21V to 20V with an external resistor divider, providing flexibility for various applications.
• Low Noise: Ultra-low output noise of only 40µVRMS over a 10Hz to 100kHz bandwidth, ideal for sensitive RF supply and precision analog circuits.
• Fast Transient Response: The regulator reacts quickly to changes in load, ensuring stable operation for high-speed digital processors that require sudden bursts of current.
• Stability: Stable with low ESR, ceramic output capacitors as low as 10µF, offering a compact solution for space-constrained applications.
• Protection Features: Includes internal protection against overcurrent and overtemperature conditions, ensuring long-term reliability.

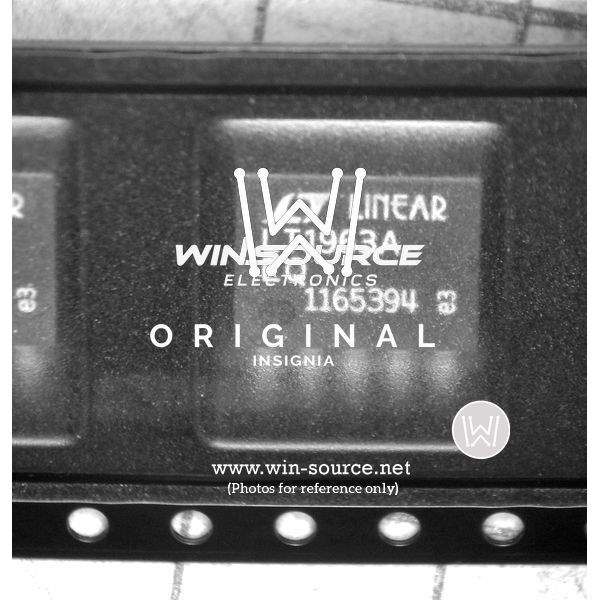

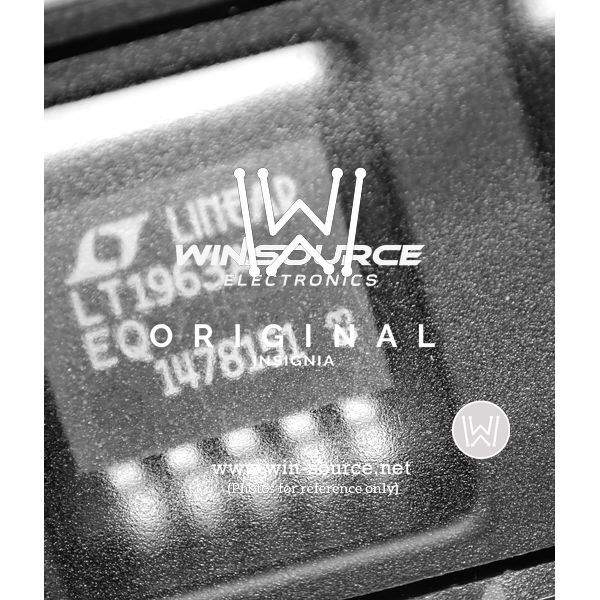

• Thermal Performance: The device comes in a TO-263 package, which provides an excellent thermal path for heat dissipation.

Applications

The LT1963AEQ#TRPBF is suitable for a wide range of applications, particularly where power supply noise can affect the performance of the system, such as:

• High-end audio equipment
• Precision data acquisition systems
• RF applications
• Telecommunications
• Medical equipment
• High-performance battery-powered devices

With its combination of low noise, high output current, low dropout, and fast transient response, the LT1963AEQ#TRPBF from Linear Technology is an excellent choice for designers looking to optimize the performance and reliability of their power supply systems.
