Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 23V
Output Voltage 0V
Output Voltage MAX 23V
Voltage Dropout (Maximum) 0.51V @ 3A
Output Current 3A
Operating Supply Current 50.5μA ~ 1mA
PSRR 85dB ~ 20dB (120Hz ~ 1MHz)
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5
Win Source Part Number 780984-LT3083IT#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LT3083
Introduction Date January 27, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT3083IT#PBF CAD Model

Description

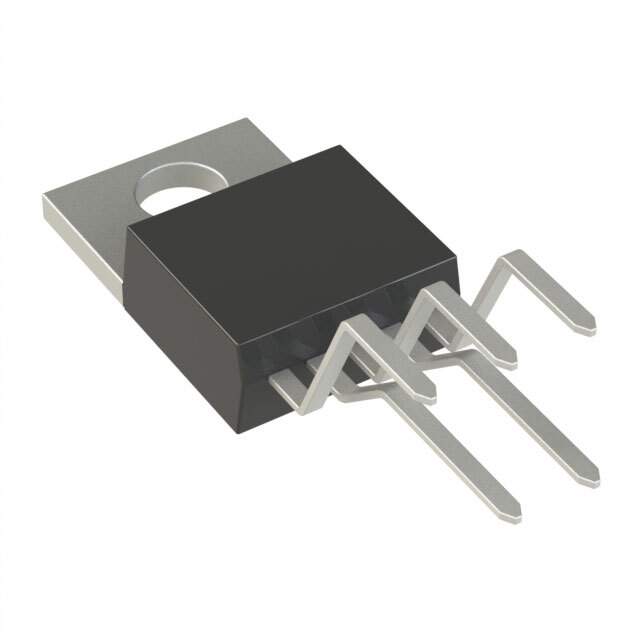

Linear Technology's LT3083IT#PBF Adjustable 3A Single Resistor Low Dropout Regulator

The LT3083IT#PBF is a versatile and robust low dropout linear regulator from Linear Technology, designed to provide precision current and voltage regulation with a high degree of customization and flexibility. This adjustable 3A regulator is capable of delivering a wide range of output voltages, which are set by a single external resistor, making it an ideal choice for a variety of applications including power supply design, post-regulation for switching power supplies, and battery charging.

At the heart of the LT3083IT#PBF is its unique architecture which allows for easy adjustment of the output voltage from 0V to near VIN, with a dropout voltage of only 310mV at maximum load. This low dropout capability ensures efficient operation even in scenarios where the input voltage is very close to the output voltage, reducing power loss and improving overall system efficiency.

The device features a wide input voltage range from 1.8V to 36V, making it suitable for a broad array of power sources. It is also capable of delivering a continuous output current of up to 3A, with the current limit adjustable by a single resistor. This flexibility allows designers to tailor the regulator to the specific needs of their application, whether it's for sensitive RF applications, automotive systems, or industrial controls.

Built with reliability in mind, the LT3083IT#PBF incorporates several protective features. These include thermal shutdown, current limiting, and reverse-battery protection. This ensures that the device can operate safely under a wide range of conditions, protecting both the regulator and the downstream components from potential damage.

The regulator is available in a robust TO-220 package, which is designed for easy mounting and excellent thermal performance. The LT3083IT#PBF is also characterized by its stable operation with ceramic, tantalum, or aluminum electrolytic capacitors, giving designers the flexibility to choose the most suitable capacitors based on performance, cost, and availability.

With its combination of flexibility, ease of use, and robust protection features, the LT3083IT#PBF from Linear Technology stands out as a reliable and efficient solution for a wide range of adjustable power supply applications.
