Product Overview: LT3506AEFE#PBF

The LT3506AEFE#PBF is a high-performance, triple-channel, current mode PWM step-down DC/DC converter designed and manufactured by Linear Technology, a leader in analog integrated circuits. This robust and versatile component is engineered to meet the demanding requirements of a wide range of applications, including automotive, industrial, and portable devices.

Key Features

• Wide Input Voltage Range: The LT3506AEFE#PBF operates from a 4V to 36V input voltage range, making it suitable for applications with varying power supplies, including those powered by automotive batteries.
• Triple Independent Step-Down Channels: This product features three independent output channels, each capable of delivering up to 1.4A of continuous output current, providing designers with the flexibility to power multiple voltage rails with a single device.
• Adjustable Switching Frequency: The switching frequency is adjustable from 250kHz to 2.2MHz, which allows optimization between efficiency and external component size. A higher switching frequency can reduce the size of passive components, while a lower frequency can improve efficiency.

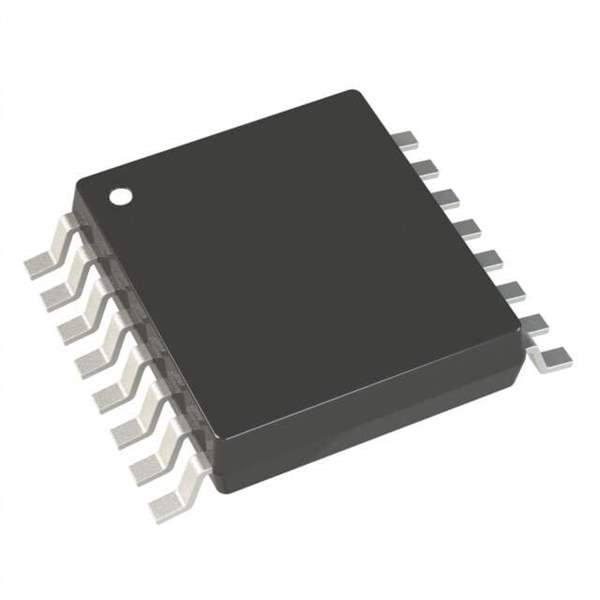

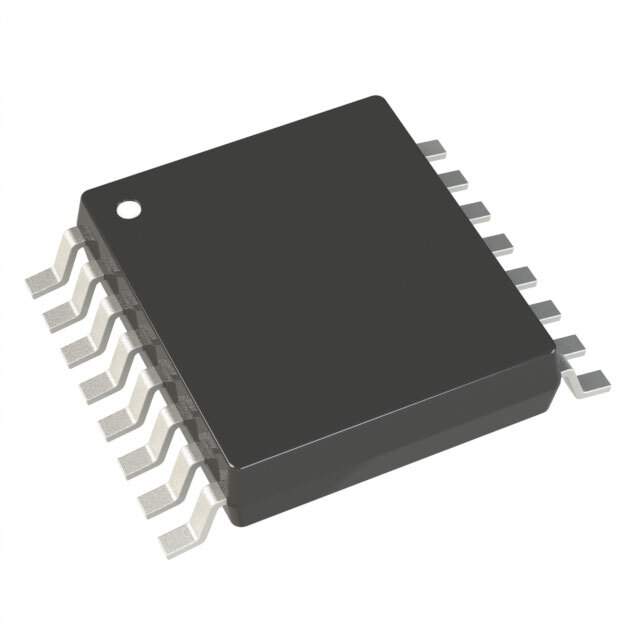

• Thermal Performance: The LT3506AEFE#PBF comes in a thermally efficient 16-lead TSSOP package with exposed pad for enhanced thermal dissipation, ensuring reliable operation even in high-temperature environments.
• Integrated Boost Diodes: The inclusion of internal boost diodes simplifies the circuit design and reduces external component count, saving board space and cost.
• Protection Features: It offers a suite of protection features such as overvoltage protection, overcurrent protection, and thermal shutdown, ensuring the longevity and reliability of the device.

Applications

The LT3506AEFE#PBF is ideal for a broad range of applications. Its robust design is particularly well-suited for automotive applications such as infotainment systems and GPS, as well as industrial power supplies and distributed power systems. Its ability to handle multiple outputs simultaneously makes it an excellent choice for complex, multi-voltage electronics that require efficient power management.

Conclusion

In summary, the LT3506AEFE#PBF from Linear Technology is a highly capable and efficient solution for managing power in multi-channel applications. Its wide input voltage range, multiple outputs, adjustable frequency, and comprehensive protection features make it an excellent choice for designers looking to optimize their power supply designs with a reliable and flexible DC/DC converter.
