Introducing the LT3680IMSE Step-Down Regulator from Linear Technology

The LT3680IMSE is a versatile, high-performance step-down regulator designed by Linear Technology, a brand synonymous with precision, reliability, and efficiency in power management solutions. This compact and robust integrated circuit is engineered to meet the stringent demands of a wide array of applications, from automotive to industrial and portable electronics.

Key Features and Benefits

• Wide Input Voltage Range: The LT3680IMSE operates from a 3.6V to 36V input voltage range, making it suitable for a variety of supply sources, including automotive batteries and industrial supplies.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to as high as 20V, providing flexibility for different application requirements.
• High-Efficiency Operation: Its high efficiency is achieved through an integrated 3.5A switch, which can deliver up to 2.5A of continuous output current to the load.
• Burst Mode® Operation: The regulator features a low quiescent current Burst Mode operation, which enhances efficiency at low output currents and prolongs battery life in portable applications.
• Thermal Protection: The device includes thermal shutdown protection to safeguard against overheating and potential damage under high-temperature operating conditions.

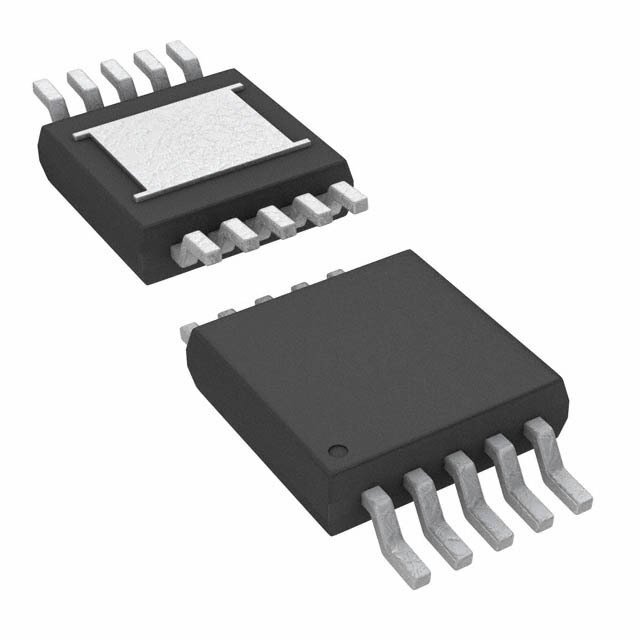

• Robust Packaging: The LT3680IMSE comes in a thermally efficient MSOP-16E package, which is designed to optimize the thermal performance and minimize the footprint on the PCB.

Applications

The versatility of the LT3680IMSE makes it an ideal choice for a multitude of applications, including:

• Automotive Electronics
• Industrial Power Supplies
• Portable Instrumentation
• Embedded Systems
• Point of Load Applications

Conclusion

Linear Technology's LT3680IMSE step-down regulator is a powerhouse in a small package, delivering high efficiency, adjustable output, and robust protection features. Whether it's for automotive systems that require a wide input voltage range or for battery-powered devices where extended battery life is crucial, the LT3680IMSE is an excellent choice for designers looking for a reliable and flexible power management solution.
