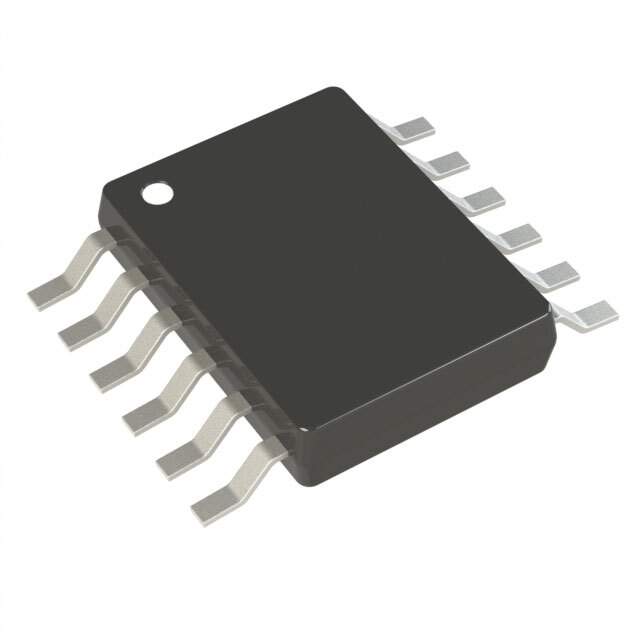

Product Overview: LT3686AHMSE#PBF

The LT3686AHMSE#PBF is a high-performance, adjustable frequency, 2A step-down switching regulator from Linear Technology, designed to make compact and efficient power conversion systems. This advanced regulator integrates key features suitable for a wide range of applications, including industrial, automotive, and communications equipment.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 3.6V to 36V, making it versatile for various applications, from low-voltage to high-voltage systems.
• Adjustable Switching Frequency: Users can adjust the switching frequency from 300kHz to 2.2MHz with an external resistor, allowing flexibility in optimizing efficiency and component size.
• High Efficiency: The LT3686AHMSE#PBF features a high efficiency of up to 95%, which helps to minimize heat generation and power loss in systems.
• Integrated 2A Switch: The built-in 2A switch can deliver significant current for demanding applications, while maintaining a compact footprint.
• Stable with Low ESR Ceramic Capacitors: The regulator is stable with ceramic output capacitors, which are small in size and have low equivalent series resistance (ESR), providing a compact solution with good transient response.
• Robust Thermal Performance: The MSOP-10E package enhances thermal performance, making the device capable of operating in challenging thermal environments.
• Overtemperature Protection: The device includes protection against overtemperature conditions, ensuring reliable operation under various conditions.

Applications

• Automotive and Industrial Systems
• Telecommunications Infrastructure
• Portable Electronics
• Distributed Power Systems

The LT3686AHMSE#PBF from Linear Technology is a highly integrated solution for power supply design, offering ease of use with its internal compensation and a minimal external component count. Its ability to deliver high power with high efficiency, combined with its robust protection features, makes it an excellent choice for designers looking to create reliable and high-performance power systems.
