The LT3757IDD is a versatile and robust DC/DC converter designed by Linear Technology, now part of Analog Devices, for a wide range of power conversion applications. This high-performance integrated circuit is capable of driving high power LEDs, charging batteries, and powering complex systems with its efficient and reliable operation.

Key Features

• Wide Input Voltage Range: The LT3757IDD operates from an input voltage range of 4.5V to 40V, making it suitable for a variety of input sources, including automotive batteries and industrial supplies.
• Adjustable Switching Frequency: With a switching frequency range from 100kHz to 1MHz, designers can optimize the converter for size, efficiency, and performance by selecting the appropriate external components.
• Integrated Boost and Open LED Protection: This device includes an integrated boost diode and open LED protection, enhancing the reliability and longevity of LED applications.
• Multiple Topology Support: The LT3757IDD supports boost, buck-boost, and SEPIC topologies, providing flexibility in designing power conversion systems.
• Programmable Soft-Start: A programmable soft-start function limits the inrush current during startup, which is critical for preventing system stress and extending the life of the product.

Applications

• High Power LED Driver
• Battery Charging
• Isolated Converters
• General Purpose Step-Up/Step-Down Converters

Package and Availability

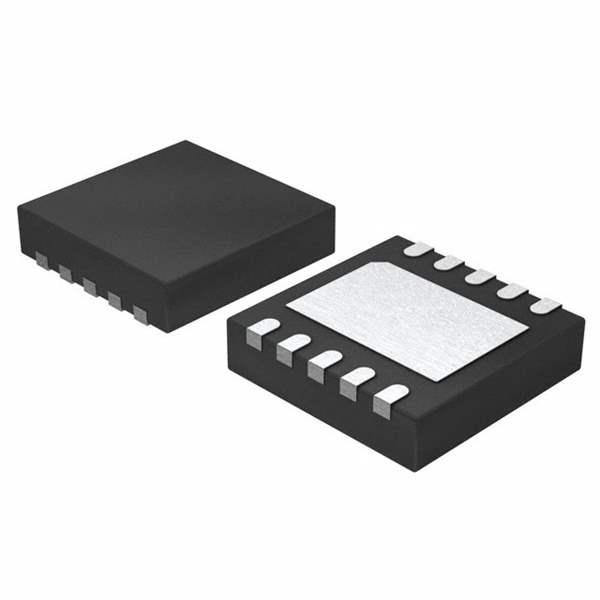

The LT3757IDD is available in a compact 10-pin DFN package with a 3mm x 3mm footprint. This small form factor is ideal for space-constrained applications while still providing excellent thermal performance. The device is also available in a thermally enhanced MSOP-10 package.

Conclusion

With its wide input voltage range, flexible topology support, and integrated features, the LT3757IDD from Linear Technology is an excellent choice for designers seeking a high-efficiency, versatile DC/DC converter for their power management needs.
